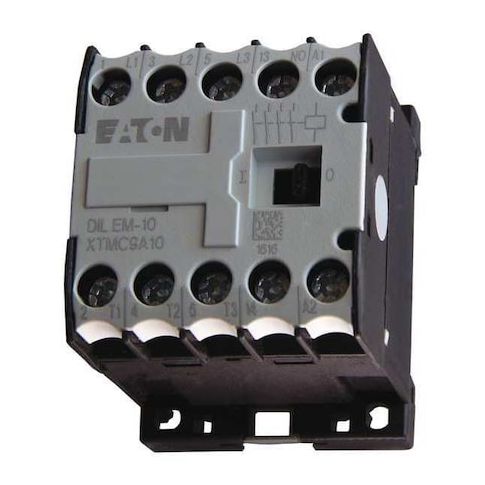

IEC Miniature Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing, Screw MPN:XTMC9A10T
Free Shipping
In Stock
The Eaton XT IEC Miniature Magnetic Contactor is a compact, reliable solution for controlling low-power circuits in a variety of applications. Its non-reversing design ensures safe and efficient operation, while the 1NO auxiliary contact provides additional functionality. With a 24V AC coil and 3-pole configuration, this contactor is ideal for use in industrial control panels, machinery, and equipment. Its compact size and DIN rail mounting make it easy to integrate into existing systems, while its IP20 enclosure rating ensures reliable performance in open environments. Perfect for use in applications such as HVAC, conveyor systems, and material handling equipment.
Top product features:
- Non-Reversing action
- 3-pole switching device
- 1NO auxiliary contact
Top product applications:
- Control Panel for Industrial Machinery
- Automated Lighting Systems
- Commercial Building Power Distribution Systems
The Eaton XT IEC Miniature Magnetic Contactor is a compact, electrically operated switching device (3-pole) with a 24V AC coil intended for controlling low-power circuits within specified parameters. It is non-reversing and includes a 1NO auxiliary contact, a surge suppression component (note: does not guarantee protection), and screw terminals for wiring. The unit is intended for DIN rail or panel mounting in open environments when installed according to instructions, and it is rated for operation within the specified voltage ranges with an IP20 enclosure rating.
Key features
- - Action: Non-Reversing
- - Poles: 3
- - Coil Voltage: 24 V AC
- - Auxiliary contact: 1NO
- - Surge suppression component: Yes (note: does not guarantee protection)
- - Electrical connection: Screw terminals
- - Frame/Series: Frame A (XT)
- - Mounting style: DIN Rail, Panel
- - Enclosure: No Enclosure
- - Frequency: 50/60 Hz
- - Maximum voltage rating: 690V AC/DC
- - IP rating: IP20
- - Certifications: UL Listed
- CSA Certified
- IEC 60947
- EN 60947
- - Mechanical durability: 10,000,000 cycles
- - Temperature range: -13°F to 122°F
- - Dimensions (W x H x D): 2.5 in x 2.0 in x 2.0 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 2.40
- Package Height: 1.90
- Package Weight: 0.40
