Manual Mtr Protector, 2.5A, Rotary, Frame B MPN:XTPR2P5BC1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1637657

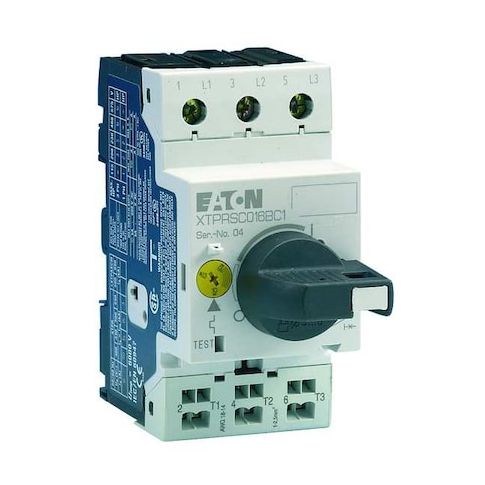

Manual Mtr Protector, 2.5A, Rotary, Frame B
Protect your motors from overloads and faults with the Eaton Manual Mtr Protector. This reliable device features a 2.5A rating and a rotary operator selector switch for easy phase selection. Suitable for a wide range of applications, including industrial and commercial settings, it can handle single-phase 240V AC motors up to 1/6 hp and three-phase motors up to 1 1/2 hp at 600V AC. The Manual Mtr Protector also features a maximum overload relay current setting of 2.5A and a minimum setting of 1.6A for added protection. Its compact design makes it easy to install and maintain.
Top product features:
- Manual operator selector switch allows for easy selection of operation mode
- Protects motors from overloads with a maximum overload relay current setting of 2.5A and a minimum setting of 1.6A
- Provides three-phase operation capabilities with horsepower ratings of 1/2 hp at 208V AC, 1/2 hp at 240V AC, 1 hp at 480V AC, and 1 1/2 hp at 600V AC
Top product applications:
- Industrial Motor Protection
- Motor Protection in Hazardous Locations
- Machine Guarding and Safety
Manual Motor Protector, NEMA Size Not Applicable, Horsepower @ Single Phase - 240V AC 1/6 hp, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 2.5 A, Horsepower @ Three Phase - 208V AC 1/2 hp, Horsepower @ Three Phase - 240V AC 1/2 hp, Horsepower @ Three Phase - 480V AC 1 hp, Series XTPR Series, Horsepower @ Three Phase - 600V AC 1 1/2 hp, Maximum Overload Relay Current Setting 2.5 A, Minimum Overload Relay Current Setting 1.6 A
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 2.00
- Package Height: 3.80
- Package Weight: 0.70
Product info last updated on March 10, 2026 3:43pm UTC
Category: Industrial Electrical Controls and Automation
