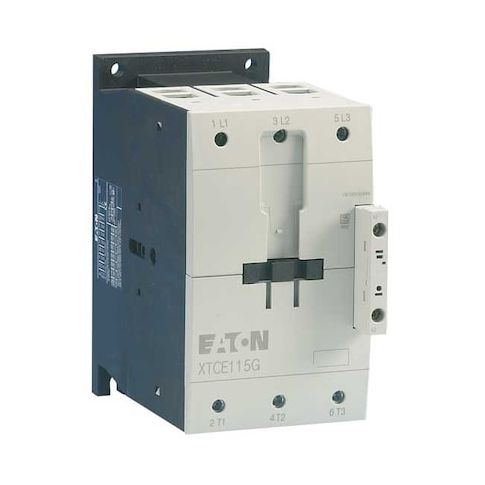

IEC Magnetic Contactor, No Auxiliary Contacts, 240V AC, 3 P, Non-Reversing, Screw MPN:XTCE115G00B

• The Eaton XT IEC contactor is an IEC magnetic contactor with non-reversing operation, built as a 3-pole device. It is driven by a 240 V AC coil and has a 115 A amperage rating with no auxiliary contacts. The unit is rated for switching power circuits within the specified parameters in accordance with IEC standards.

  Key features

• - Action: Non-Reversing
• - Poles: 3
• - Coil Voltage: 240 V AC
• - Amperage Rating: 115 A
• - Aux Contacts: No auxiliary contacts
• - Contactor Style/Series: IEC, XT
• - Frame Size: G
• - Mounting: DIN Rail, Panel
• - Electrical Connection: Screw terminals
• - Enclosure: No Enclosure
• - IP Rating: IP20
• - Maximum Voltage Rating: 690 V AC
• - Frequency: 50/60 Hz
• - Mechanical Operating Durability: 10,000,000 cycles
• - Electrical Operating Durability: 300 (AC-4 400V Ie)
• 800 (AC-1 400V Ie)
• 800 (AC-3 400V Ie)
• - Operating Temperature: -13°F to 122°F
• - Dimensions (approx.): Height 6.69 in
• Width 4.37 in
• Depth 6.3 in
• - Certifications/Standards: CE Marked
• UL Listed
• EN 60947
• IEC 60947
• RoHS
• CSA
• - Product Name: Eaton XT IEC contactor
