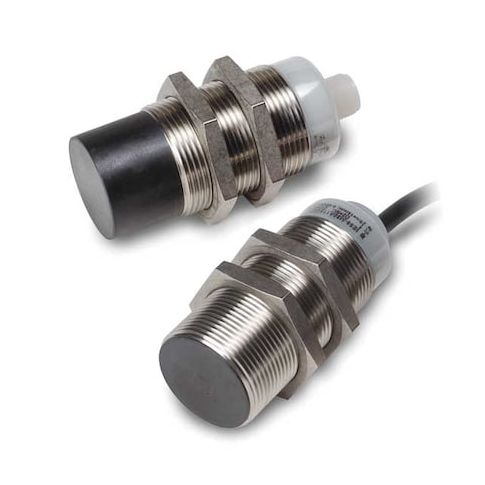

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, Micro, 2 Wires, Shielded MPN:E59-M30A115A01-A1
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, Micro, 2 Wires, Shielded
This versatile inductive proximity sensor is designed for use in a variety of applications, including industrial automation, material handling, and robotics. Its cylindrical shape and stainless steel construction make it ideal for harsh environments, while its shielded design and NEMA rating of 12, 13, 4, 4X, 6, and 6P ensure reliable operation. With a maximum detecting distance of 15 mm and a frequency of 30 Hz, this sensor can detect even the smallest objects. Its compact size and low power requirements make it easy to integrate into existing systems, providing a reliable and efficient solution for a range of applications.
Top product features:
- Cylindrical shape allows for easy installation in tight spaces
- Inductive technology detects metal objects within a 15 mm distance
- Shielded design provides reliable operation in harsh environments
Top product applications:
- Automotive applications due to its NEMA rating and IP67/69K rating for harsh environments
- Industrial machinery monitoring due to its high operating temperature range and long detecting distance
- Medical equipment monitoring due to its stainless steel material and high IP rating for sanitation requirements
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 20 to 132V AC, Shielded, Proximity Sensor Operating Frequency 30 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 3 Pin Micro AC Connector, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 74 mm, Operating Temp. Range -40 Degrees to 158 Degrees F, Max. Current Load 250mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 2.10
- Package Height: 2.00
- Package Weight: 0.35
Product info last updated on January 30, 2026 11:49pm UTC
Category: Industrial Electrical Controls and Automation
