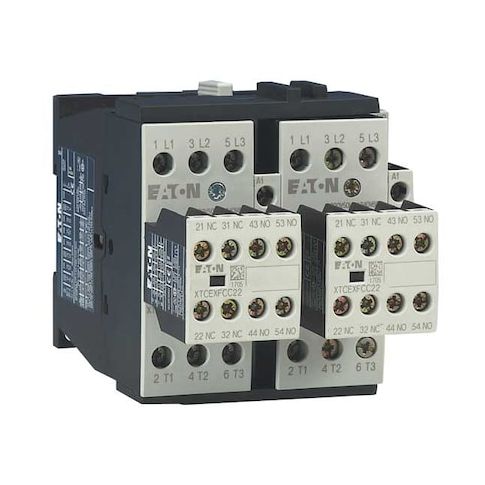

IEC Magnetic Contactor, 1NC/2NO, 208V AC, 3 P, Reversing, Screw MPN:XTCR025C21E
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for a wide range of applications, including industrial control systems, motor control, and power distribution. Its reversing function allows for easy and safe switching of loads, making it ideal for applications that require frequent direction changes. The contactor's 3-pole design and 208V AC coil voltage make it suitable for use in various industries, including manufacturing, oil and gas, and food processing. With a high amperage rating and robust auxiliary contacts, this contactor provides reliable and consistent performance in demanding applications.
Top product features:
- Reversing function is included as a feature
- Operates from a 208V AC coil
- Has auxiliary contacts
Top product applications:
- Industrial Control Panels
- Automotive Systems
- Power Generation Systems
The Eaton XT IEC contactor is an IEC magnetic contactor with reversing functionality as specified and 3 poles. It operates from a 208V AC coil and is rated for mounting on DIN rails or panels within specified configurations. The unit has auxiliary contacts and does not include an enclosure.
- Reversing function is included as a feature
- - Poles: 3
- - Coil Voltage: 208V AC
- - Amperage Rating: 25A (Full Load Inductive)
- 45A (Full Load Resistive)
- - Auxiliary Contacts: 4 (Configuration 2NO/1NC
- Form 1NC/2NO)
- - Includes Auxiliary Contacts: Yes
- - Terminal Connection: Screw
- - Mounting Style: DIN Rail, Panel
- - Frame/Series/Code: Frame C
- Series XT
- - Type: Full voltage reversing contactor
- - Reversing: Yes
- - Frequency: 60 Hz
- - IP Rating: rated at IP20 (as per standard testing conditions)
- - Enclosure: does not include an enclosure
- - Certifications/Standards: IEC 60947
- EN 60947
- UL Listed
- CSA Certified
- CE Marked
- RoHS
- - Dimensions (W x D x H): 7.5 in x 4.75 in x 4.5 in
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.90
- Package Width: 5.00
- Package Height: 7.10
- Package Weight: 2.55
