Manual Mtr Protector, 32A, Rotary, Frame B MPN:XTPR032BC1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1596454

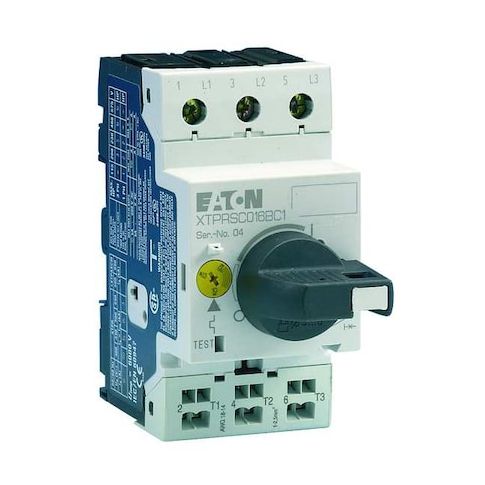

Manual Mtr Protector, 32A, Rotary, Frame B
Protect your motors from damage with the Eaton Manual Motor Protector, a reliable and efficient solution for motor protection. This 32A protector features a rotary operator selector switch and is designed for use in a variety of applications, including industrial and commercial settings. With a maximum voltage rating of 600V AC, it can handle high-power motors with ease. The protector's current AC rating of 32A ensures safe and reliable operation, while its compact design makes it easy to install in tight spaces. Suitable for use with motors up to 30 hp, this protector is a must-have for any motor-based system.
Top product features:
- Protects motors from overloads and faults with an operator selector switch
- Detects and responds to three-phase power with a maximum current rating of 32A
- Supports a wide range of horsepower ratings, from 2 to 30 horsepower, depending on the voltage and phase configuration
Top product applications:
- Industrial Motor Protection
- Motor Circuit Protection
- Machine Guarding
Manual Motor Protector, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 5 hp, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 32 A, Horsepower @ Three Phase - 208V AC 7 1/2 hp, Horsepower @ Three Phase - 240V AC 10 hp, Horsepower @ Three Phase - 480V AC 20 hp, Series XTPR Series, Horsepower @ Three Phase - 600V AC 30 hp, Maximum Overload Relay Current Setting 32 A
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 2.00
- Package Height: 3.80
- Package Weight: 0.69
Product info last updated on February 17, 2026 1:37am UTC
Category: Industrial Electrical Controls and Automation
