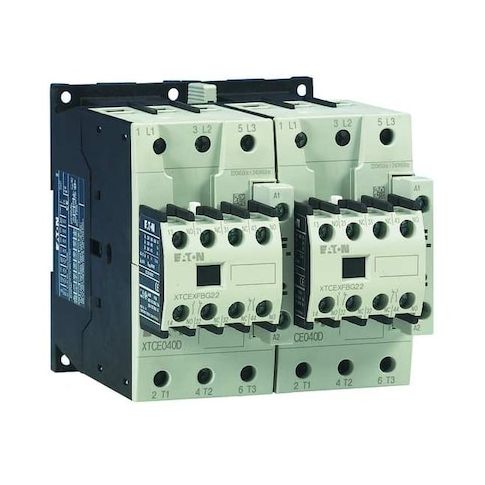

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Reversing, Screw MPN:XTCR065D11E
Free Shipping
In Stock
The Eaton IEC Magnetic Contactor is a reliable and versatile solution for industrial applications, offering a reversing action feature for flexible motor control. With a rating of 208V AC and 65A, it can handle various loads and is suitable for use in three-phase systems. Its certifications from UL Listed, CSA Certified, EN60947, and IEC60947 ensure compliance with industry standards. This contactor is ideal for use in industrial settings where motor control and flexibility are essential, such as in manufacturing, material handling, and process control applications. Its robust design and reliable performance make it a trusted choice for professionals.
Top product features:
- Reversing action enables flexibility in controlling motor operations.
- Auxiliary contacts provide additional circuit flexibility with a 1NO/1NC configuration.
- The contactor is rated for operation at an AC voltage of 208V, indicating the power requirement for activating the contactor.
Top product applications:
- Motor Control Circuits
- Industrial Automation Systems
- Power Distribution Systems
The EATON - IEC Magnetic Contactor is a reversing contactor with a coil voltage of 208V AC. It has an amperage rating of 65A and comes with a screw terminal for electrical connection. The contactor features both inductive and resistive full load currents, rated at potentially 65 A and 98 A respectively. This product is rated for operation at a frequency of 60 Hz, and may be used in various industrial applications. It also includes auxiliary contacts and holds certifications from UL Listed
- CSA Certified
- EN60947
- IEC60947 indicating compliance with certain industry standards.
Key Features:
- - Reversing action: This feature enables the contactor's reversing action which may offer flexibility in controlling motor operations.
- - Auxiliary Contact Configuration: With a configuration of 1NO/1NC (Normally Open/Normally Closed), this feature could contribute to additional circuit flexibility.
- - Coil Voltage: Rated for operation at an AC voltage of 208V, indicating the power requirement for activating the contactor.
- - Full Load Amps: Represents potential maximum current capacity under specified conditions - Inductive load rated up to potentially 65A and Resistive load rated up to potentially 98A.
- - Horsepower Ratings: Horsepower ratings vary across different phase voltages suggesting possible compatibility with a range of motor capacities from single-phase (5hp @120VAC &15hp @240VAC) through three-phase motors (20hp @208VAC,25hp@240VAC,50hp@480VAC &60hp@600VAC).
- - Certifications & Standards Compliance: Holds certifications from UL Listed, CSA Certified, EN60947, and IEC60947 indicating compliance with certain industry standards.
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.30
- Package Width: 6.30
- Package Height: 5.80
- Package Weight: 4.66
