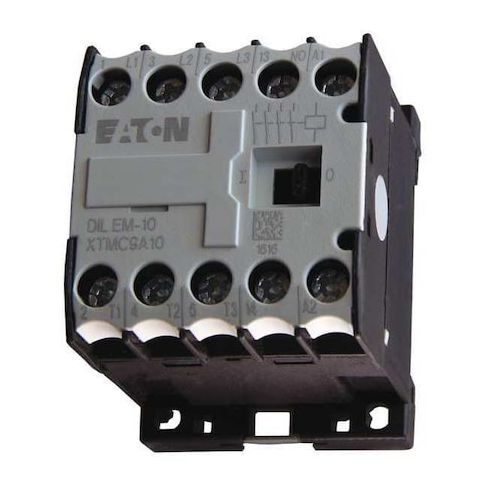

IEC Miniature Magnetic Contactor, 1NO, 240V AC, 3 P, Non-Reversing, Screw MPN:XTMC9A10B

• The Eaton XT IEC Miniature Magnetic Contactor is a 3-pole, non-reversing device with a 240 V AC coil used to control lower-power circuits. Rated for operation within IEC standards, it is compatible with DIN-rail and panel mounting methods and includes 1 NO auxiliary contact (Frame A).

  - Coil Voltage: 240 V AC

• - Amperage rating: 8.80 A
• - Full Load Amps: Inductive 9 A
• Resistive 20 A
• - Poles: 3
• - Auxiliary contacts: 1 NO
• - Auxiliary Contact Configuration: 1NO
• - Action: Non-Reversing
• - Reversing: No
• - Mounting style: DIN Rail, Panel
• - Mounting position: Vertical
• - Enclosure: No Enclosure
• - IP Rating: IP20
• - Frame / Series / Class: XT / Frame A
• - Maximum voltage rating: 690 V AC/DC
• - Electrical connection: Screw terminals
• - Includes embedded surge suppressor: Yes
• - Certifications/Standards: UL Listed
• CSA Certified
• IEC 60947
• EN 60947
• CE Marked
• RoHS
• - Overall dimensions: Width 2.5 in
• Height 2 in
• Depth 2.5 in
