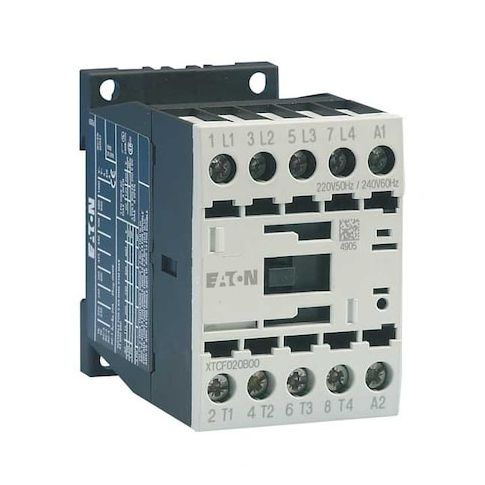

IEC Magnetic Contactor, No Auxiliary Contacts, 24V AC, 4 P, Non-Reversing, Screw MPN:XTCF020B00T
The Eaton XT IEC magnetic contactor is a reliable and efficient solution for a wide range of industrial applications. Its 4-pole design and 20A amperage rating make it suitable for controlling high-power loads, while its non-reversing operation ensures safe and consistent performance. The contactor's embedded surge suppressor and IP20 enclosure rating provide added protection against electrical surges and environmental factors. Ideal for use in control panels, machine automation, and power distribution systems, this contactor is certified to meet stringent safety standards and is CE marked for use in the European market.
Top product features:
- The Eaton XT IEC contactor has a 20 A amperage rating.
- The contactor supports non-reversing operation.
- The contactor features an embedded surge suppressor.
Top product applications:
- Industrial Automation Systems
- Motor Control Circuits
- Machine Control Panels
The Eaton XT IEC contactor is a 4-pole IEC magnetic contactor with a 24 V AC coil. The contactor has a 20 A amperage rating, supports non-reversing operation, includes an embedded surge suppressor, uses screw terminals, and can be mounted on DIN Rails or panels. It features an IP20 enclosure rating.
- Coil Voltage: 24 V AC
- - Action: Non-Reversing
- - Reversing: No
- - Poles: 4
- - Amperage Rating: 20A
- - Aux. Contacts: No Auxiliary Contacts
- - Embedded Surge Suppressor: Yes
- - Electrical Connection: Screw Terminals
- - Mounting Style: DIN Rail, Panel
- - Frame Size / Series: Frame B (XT)
- - Enclosure NEMA: No Enclosure
- - IP Rating: IP20
- - Maximum Voltage Rating: See product specifications for supported voltage ranges
- - Frequency: 50/60 Hz
- - Certifications/Standards: UL Listed
- CSA Certified
- IEC 60947
- EN 60947
- - Standards: CE Marked
- RoHS
- - Mechanical Operating Durability: 10000000 cycles
- - Operating Temperature: -13°F to 122°F
- - Dimensions: Overall Width 3 in
- Overall Height 2 in
- Overall Depth 3 in
- - Type: Full voltage non-reversing contactor
- - Contact Configuration: 0 NO, 0 NC
- - Includes Auxiliary Contacts: No
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.80
- Package Width: 2.00
- Package Height: 3.10
- Package Weight: 0.56
