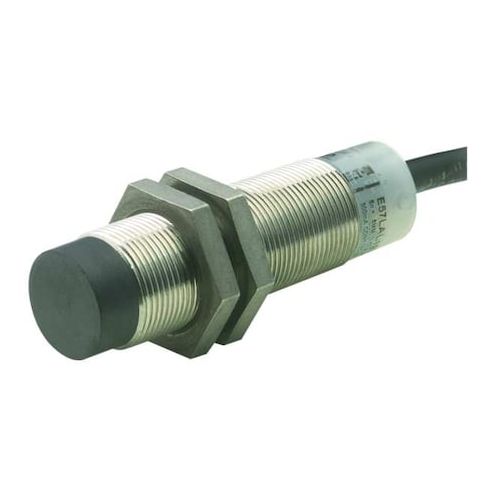

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, M12, 3 Wires, Unshielded MPN:E57-18LE20-C1D
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, M12, 3 Wires, Unshielded
This inductive proximity sensor is a versatile solution for detecting objects in industrial and commercial settings. Its cylindrical design and stainless steel construction make it ideal for use in harsh environments, while its 500 Hz operating frequency and 20 mm maximum detecting distance provide reliable detection of objects. The sensor's 3-wire NPN output circuit and 4-pin micro DC connector make it easy to integrate into existing systems. Suitable for applications such as material handling, conveyor systems, and automation, this sensor offers a reliable and efficient solution for detecting objects and improving productivity.
Top product features:
- Inductive proximity sensing technology allows the sensor to detect objects within a 20 mm range
- The sensor operates at a frequency of 500 Hz
- The 303 Stainless Steel case material provides corrosion resistance
Top product applications:
- Automotive assembly lines
- Material handling systems
- Food processing equipment
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 6 to 48V DC, Unshielded, Proximity Sensor Operating Frequency 500 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 20 mm, Proximity Sensor Electrical Connection 4 Pin Micro DC Connector, Output Mode NC, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 69 mm, Operating Temp. Range -13 Degrees to 158 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.80
- Package Height: 3.20
- Package Weight: 0.10
Product info last updated on February 8, 2026 4:31am UTC
Category: Industrial Electrical Controls and Automation
