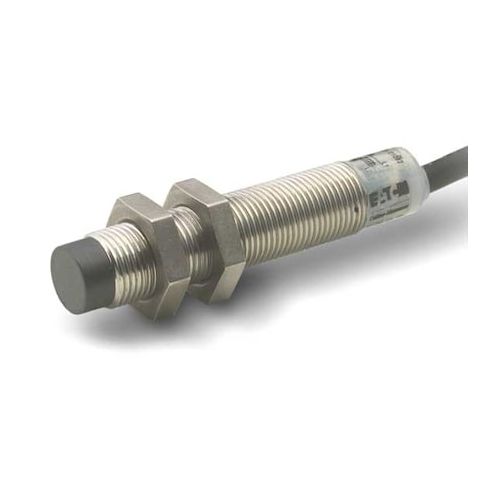

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, 2 m, Bare Wire, 2 Wires, Unshielded MPN:E57-12LE10-A1
Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, 2 m, Bare Wire, 2 Wires, Unshielded
The Eaton Inductive Cylindrical Proximity Sensor is a reliable and durable solution for detecting objects in industrial settings. Its 12mm diameter stainless steel body withstands harsh environments, while its 2m cable provides flexibility in installation. Suitable for use in applications such as conveyor belt monitoring, tank level sensing, and material handling, this sensor offers a maximum detecting distance of 10mm and operates at frequencies up to 20Hz. With a compact 73mm length and operating temperature range of -13 to 158°F, this sensor is perfect for use in applications where space and temperature are concerns.
Top product features:
- Cylindrical shape allows for easy installation in tight spaces
- Detects objects within a 10 mm distance
- Operates within a temperature range of -13 to 158 degrees Fahrenheit
Top product applications:
- Automotive manufacturing
- Material handling equipment
- Food processing machinery
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 20 to 132V AC, Unshielded, Proximity Sensor Operating Frequency 20 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 73 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 250mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 1.90
- Package Height: 5.90
- Package Weight: 0.25
Product info last updated on March 18, 2026 5:25pm UTC
Category: Industrial Electrical Controls and Automation
