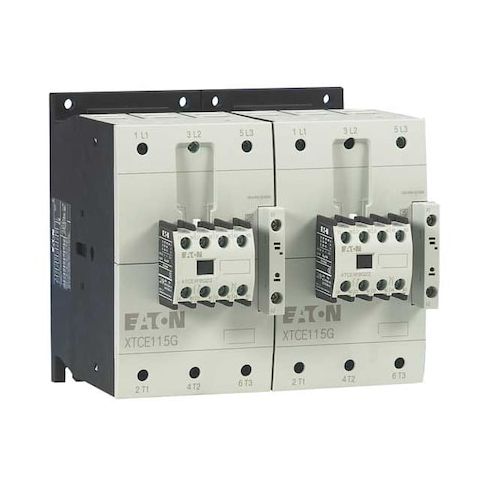

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw MPN:XTCR115G11A

• The Eaton XT IEC contactor is a 3-pole reversing magnetic contactor rated for operation within IEC standards. It has a coil voltage rating of 120 V AC and an auxiliary contact configuration of 1 normally open and 1 normally closed (2 auxiliary contacts total). The unit uses screw terminals and is suitable for DIN Rail or panel mounting (Frame G, XT series). It includes an embedded surge suppressor and is rated for full-load currents up to 115 A (inductive), 160 A (resistive). The unit has an IP20 ingress protection rating.

  - Action: Reversing (allows control of current flow in both directions)

• - Coil Voltage: 120 V AC
• - Amperage Rating: 115 A (inductive), 160 A (resistive) full-load
• - Poles: 3
• - Auxiliary Contacts: 2 total (1 NO / 1 NC)
• - Embedded Surge Suppressor: Yes
• - Termination: Screw terminals
• - Mounting Style: DIN Rail, Panel
• - Frame Size / Series: Frame G / XT
• - Certifications: UL Listed
• CSA Certified
• IEC Rated
• CE Marked
• - IP Rating: IP20
• - Enclosure: No Enclosure
• - Product Name: Eaton XT IEC contactor
