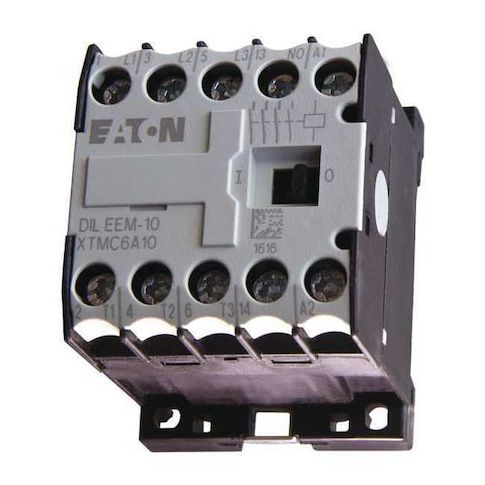

IEC Miniature Magnetic Contactor, 1NO, 24V DC, 3 P, Non-Reversing, Screw MPN:XTMC6A10TD

• The Eaton XT IEC mini contactor is an IEC miniature magnetic switching device used to control lower-power circuits. Rated for operation with a 24 V DC coil

• features include non-reversing operation, three main poles, and one normally open auxiliary contact. It uses screw terminals and supports DIN Rail or Panel mounting
• it has no enclosure and an IP20 rating. Dimensions: approximately 1.44 inches wide, 2.28 inches high, and 1.79 inches deep.

  - Coil voltage: 24 V DC

• - Action: Non-Reversing
• Reversing: No
• - Poles and auxiliary: 3 poles
• 1 auxiliary contact (1 NO)
• - Includes an embedded surge suppression component (not necessarily rated for specific transient levels).
• - Rated for use within specified voltage ranges up to a maximum of 690 V AC/DC as per standards
• actual application should be within manufacturer specifications.
• - Designed to operate within the specified current ratings under normal conditions when used according to instructions.
• - Complies with applicable standards and certifications but does not imply suitability for all applications or environments beyond those standards listed.
• - Compatible with DIN Rail or panel mounting configurations as specified by manufacturer guidelines
• installation should follow proper procedures to ensure correct operation.
• - Does not include an enclosure rated at IP20
• use in accordance with environmental considerations outlined by the manufacturer.
• - Equipped with screw terminal connections suitable for wiring within specified parameters.
• - Frame/Series: Frame A
• Series XT
• - Has been tested for mechanical durability up to this number of cycles under test conditions—not necessarily indicative of lifespan during actual use.
• - Designed to operate within these temperature ranges—actual performance may vary based on operating environment.
• - Response time: 8–35 ms depending on coil type and operation
