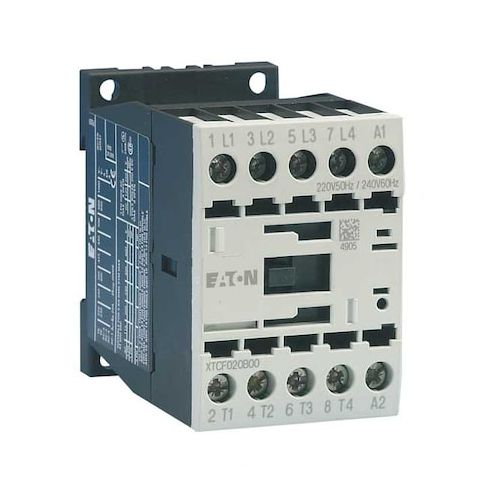

IEC Magnetic Contactor, No Auxiliary Contacts, 240V AC, 4 P, Non-Reversing, Screw MPN:XTCF020B00B

• The Eaton IEC Magnetic Contactor is a four-pole, non-reversing electric switch rated for controlling power circuits within specified parameters. It uses a 240 V AC coil, screw-terminal connections, and Frame B (XT series) construction for IEC-style control. The unit includes an integrated surge suppression component and has no auxiliary contacts or enclosure, and is rated for operation within specified voltage and frequency ranges as per product specifications.

  Key features

• - Action: Non-Reversing
• - Auxiliary contacts: No Auxiliary Contacts
• - Coil voltage / Coil volts: 240 V AC within specified tolerances
• - Contactor style: IEC
• - Frame size: B (Frame B), Series XT
• - Poles: 4
• - Mounting style: DIN Rail, Panel
• - Terminal connection: Screw
• - Integrated surge suppression component: Yes
• - Enclosure: No Enclosure
• - Operating frequency: 50/60 Hz (rated for operation at standard frequencies within specified limits)
• - Phase: Three-phase (compatible with three-phase systems as per design specifications)
• - Maximum voltage rating: 690 V AC (rated for voltages up to the maximum specified value
• does not imply guaranteed performance at that level)
• - IP rating: IP20
• - Mechanical operating durability: 10,000,000 cycles
• - Operating temperatures: Min -13°F, Max 122°F
• - Full load amps: Inductive 12 A, Resistive 22 A
• - HP ratings (selected voltages/phases): 1 hp @ 120V, 2 hp @ 230V, 2 hp @ 240V, 3 hp @ 208V (3 Phase), 3 hp @ 240V, 10 hp @ 480V, 10 hp @ 575V
• - Mounting hole diameter: 0.16 in
• - Mounting hole distance (Height): 2.36 in
• - Mounting hole distance (Width): 1.38 in
• - Overall dimensions: Depth 2.95 in, Height 2.68 in, Width 1.77 in
• - Standards: CE, CSA, EN/IEC 60947, RoHS, UL Listed
• - Maximum operating voltage: 690 V AC
• - Auxiliary contacts count: 0
