IEC Magnetic Contactor, 1NC, 208V AC, 3 P, Non-Reversing, Screw MPN:XTCE032C01E
Free Shipping
In Stock

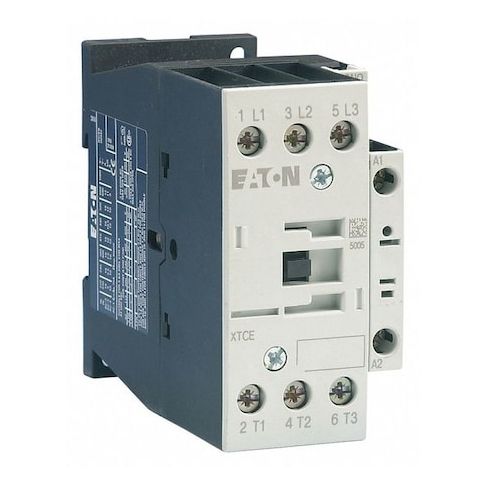

The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for a wide range of applications, including motor control and power distribution in industrial and commercial settings. Its non-reversing design ensures consistent and precise control, while its 3-pole configuration provides robust and durable performance. With a 208V AC coil and screw terminals, this contactor is easy to integrate into existing systems. Its compact design and DIN Rail or Panel mounting capabilities make it ideal for use in tight spaces. Perfect for applications in manufacturing, HVAC, and more, this contactor offers reliable and efficient control.
Top product features:
- Non-Reversing Action
- Three-Pole Design
- Screw Terminal Connection
Top product applications:
- Industrial Control Systems
- Motor Control Panels
- HVAC Systems
The Eaton XT IEC contactor is a 3-pole, non-reversing IEC magnetic contactor (frame C) with a 208 V AC coil. It is rated for operation within specified current ratings and includes one 1NC auxiliary contact. The device uses screw terminals and supports DIN Rail or Panel mounting. It does not include an enclosure
- IP Rating: IP20. Maximum Voltage Rating: rated for operation up to the specified voltage and frequency parameters. Frequency: 60 Hz. It is designed to operate within the specified temperature range, with a mechanical lifespan based on typical usage conditions. Certifications include CSA Certified
- IEC 60947
- UL Listed
- EN 60947, and it carries CE Marked compliance.
- Action: Non-Reversing
- - Poles: 3
- - Coil Voltage: 208 V AC
- - Auxiliary Contacts: 1NC (Includes auxiliary contact)
- - Terminal Connection: Screw
- - Frame Size / Series: Frame C / XT
- - Enclosure: does not include an enclosure
- IP Rating: IP20
- - Maximum Voltage Rating: rated for operation up to the specified voltage and frequency parameters
- - Frequency: 60 Hz
- - Certifications: CSA Certified
- IEC 60947
- UL Listed
- EN 60947
- - Compliance: CE Marked
- - Mounting Style: DIN Rail, Panel
- - Mechanical Durability: has a mechanical lifespan based on typical usage conditions
- - Operating Temperature: designed to operate within the specified temperature range
- - Dimensions: Height 3.9 in
- Width 1.85 in
- Depth 3.43 in
- - Includes Auxiliary Contacts: Yes
- - Type: Full voltage non-reversing contactor
- - Reversing: No
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 1.90
- Package Height: 4.00
- Package Weight: 1.00
