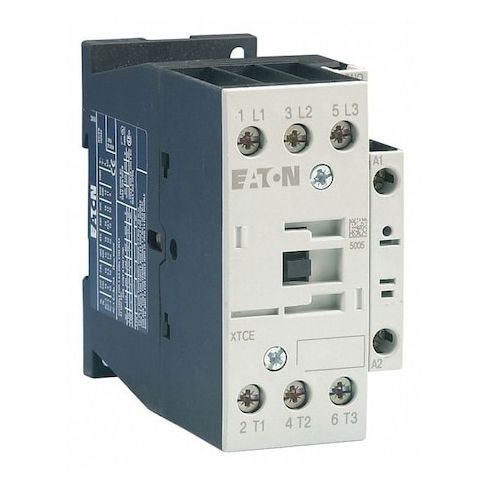

IEC Magnetic Contactor, 1NC, 24V DC, 3 P, Non-Reversing, Screw MPN:XTCE025C01TD
Free Shipping
In Stock
The Eaton XT IEC magnetic contactor is a reliable and efficient solution for switching power circuits in industrial applications. Its non-reversing action and 3-pole design make it ideal for use in control panels, motor starters, and other systems where precise control is required. With a compact size and screw terminals, it's easy to install and integrate into existing systems. The contactor's high current rating and robust construction ensure reliable operation in demanding environments, making it a great choice for use in manufacturing, oil and gas, and other industries where power switching is critical.
Top product features:
- IEC magnetic contactor rated for switching power circuits within its specified parameters
- Includes one 1NC auxiliary contact for additional control and functionality
- Embedded surge suppressor provides protection against voltage spikes and electrical surges
Top product applications:
- Power Distribution Panels
- Industrial Automation Systems
- Motor Control Centers
The Eaton XT IEC contactor is an IEC magnetic contactor rated for switching power circuits within its specified parameters. It includes one 1NC auxiliary contact, uses screw terminals for wiring, and has a frame size of C within the XT series. It is offered without an enclosure and is rated for up to 690 V AC.
- Coil voltage: 24 V DC
- - Action: Non-Reversing
- - Reversing: No
- - Poles: 3
- - Full Load Amps: Inductive 25 A
- Resistive 45 A
- - Auxiliary contacts: 1 NC
- - Maximum voltage rating: 690 V AC
- - Terminals: Screw
- - Mounting: DIN Rail, Panel
- - Enclosure: No Enclosure
- - IP rating: IP20
- - Embedded surge suppressor: Yes
- - Series/Frame: XT / Frame C
- - Dimensions (W x H x D): 3.5 in x 1.5 in x 4 in
- - Certifications: UL Listed
- CSA Certified
- CE Marked
- EN 60947
- IEC 60947
- RoHS
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 1.90
- Package Height: 3.90
- Package Weight: 1.21
