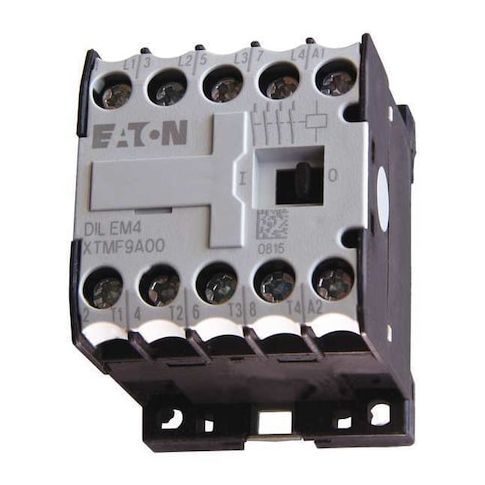

IEC Miniature Magnetic Contactor, No Auxiliary Contacts, 24V AC, 4 P, Non-Reversing, Screw MPN:XTMF9A00T
Free Shipping
In Stock
The Eaton XT IEC mini contactor is a reliable and efficient solution for various industrial applications. This four-pole contactor is designed for use in 24V AC systems and features a non-reversing operation with no auxiliary contacts. Its compact design and screw terminals make it ideal for DIN Rail or Panel mounting in Frame A size. The contactor is rated for operation up to 690V AC/DC and is certified to meet international standards. Suitable for applications such as HVAC, lighting control, and pump control, the Eaton XT IEC mini contactor provides a reliable and efficient solution for industrial automation needs.
Top product features:
- Four-pole IEC miniature magnetic contactor design
- Non-reversing operation
- Open design with IP20 rating
Top product applications:
- Motor Control
- Control of electric motors in industrial automation applications
- Control of HVAC systems in commercial and industrial buildings
The Eaton XT IEC mini contactor is a four-pole IEC miniature magnetic contactor with a 24 V AC coil. It is non-reversing and has no auxiliary contacts
- it uses screw terminals and is rated for DIN Rail or Panel mounting in Frame A size, with an open design and IP20 rating.
- Coil voltage: 24 V AC
- - Poles: 4
- - Reversing: Non-Reversing
- - Auxiliary contacts: No Auxiliary Contacts
- - Terminals: Screw
- - Mounting: DIN Rail, Panel
- - Frame/Code: Frame A
- - Enclosure: No Enclosure
- IP20
- - Rated for operation up to 690V AC/DC within specified conditions
- - Phase: Three
- - Frequency: 50/60 Hz
- - Tested for mechanical durability over specified cycle counts
- - Operating temperature: Rated for operation within the specified temperature range
- - Dimensions: 2.5 in W x 2.25 in D x 2.0 in H
- - Certifications/Standards: UL Listed
- CSA Certified
- IEC 60947
- EN 60947
- CE Marked
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 1.80
- Package Height: 2.20
- Package Weight: 0.40
