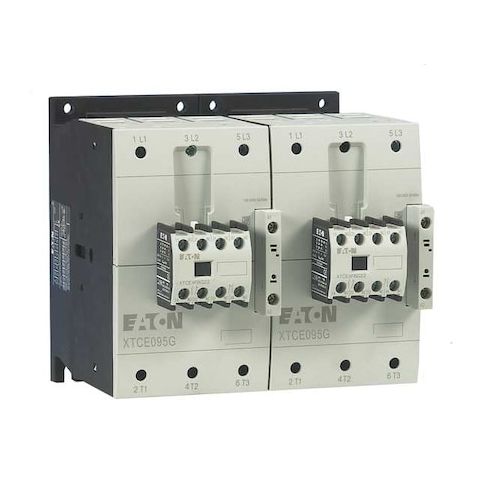

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Reversing, Screw MPN:XTCR080F11TD
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for switching power circuits, including motors and other loads. With a reversing capability and 2 auxiliary contacts, this contactor provides flexibility and control in various applications. Suitable for use in environments with high inductive and resistive loads, it can handle currents up to 80A inductively or 110A resistively. This contactor is ideal for use in industrial automation, HVAC, and other power distribution systems, offering a compact and easy-to-install design that meets international safety standards, including CE Marked, UL Listed, and CSA Certified.
Top product features:
- Reversing Capability: The unit is capable of reversing the direction of the power circuit.
- Embedded Surge Suppressor: The contactor includes an embedded surge suppressor to protect against voltage spikes.
- Full Load Amps: The contactor is rated for use at currents up to 80 A inductively or 110 A resistively under specified conditions.
Top product applications:
- Motor control
- Power circuit switching
- Load switching
The Eaton XT IEC contactor is rated for operation within specified voltage ranges and intended for switching applications involving power circuits, including motors and other loads. The unit is built as Frame F and supports mounting on DIN rails or panels, and it includes two auxiliary contacts (1 NO/1 NC).
Key features
- - Action: Reversing (describes the functionality of the device)
- - Reversing Capability: Reversing
- - Coil Voltage: 24 V DC
- - Contact Configuration: 1 NO, 1 NC
- - Auxiliary Contacts: 2 total (1 NO/1 NC)
- - Full Load Amps: Rated for use at currents up to 80 A inductively or 110 A resistively under specified conditions
- - Embedded Surge Suppressor: Yes
- - Mounting Style: DIN Rail, Panel
- - Termination: Screw
- - Frame / Series / Type: Frame F
- Series XT
- Full voltage reversing contactor
- - Enclosure: Enclosure details are provided
- ensure installation complies with applicable standards
- - Certifications: CE Marked
- UL Listed
- EN 60947
- IEC 60947
- RoHS
- CSA Certified
- - Dimensions (approx.): Width 6.54 in
- Height 6.14 in
- Depth 5.08 in
- - Mounting Details: Mounting Hole Diameter 0.27 in
- Mounting Hole Distance - Height 11.77 in
- Mounting Hole Distance - Width 6.97 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.60
- Package Width: 11.10
- Package Height: 8.00
- Package Weight: 14.97
