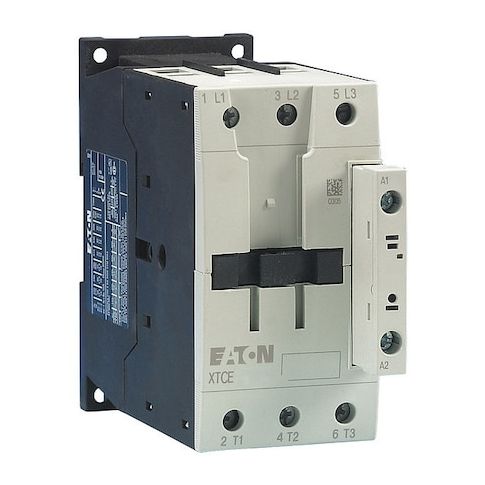

IEC Magnetic Contactor, No Auxiliary Contacts, 480V AC, 3 P, Non-Reversing, Screw MPN:XTCE065D00C

• The Eaton XT IEC contactor is a 3-pole, non-reversing IEC magnetic contactor with a 480 V AC coil. It uses screw terminals and has no auxiliary contacts, rated for use within the specified application parameters and compliant with IEC standards.

  - Product Name: Eaton XT IEC contactor

• - Poles: 3
• - Action: Non-Reversing
• - Coil Voltage: 480 V AC
• - Amperage rating: 65 A (inductive) / 98 A (resistive)
• - Auxiliary Contacts: No auxiliary contacts (0 NO, 0 NC)
• - Frame Size: D
• Series: XT
• - Mounting Style: DIN Rail, Panel
• - Terminal Connection: Screw
• - Enclosure: No Enclosure
• - IP Rating: IP20
• - Maximum Voltage Rating: 690 V AC
• - Certifications: UL Listed
• CSA Certified
• IEC 60947
• EN 60947
• - Standards: CE Marked
• RoHS
• UL Listed
• CSA
• - Frequency: 50/60 Hz
• - Mechanical Durability: 10,000,000 cycles
• - Electrical Operating Durability: 300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie)
• - Operating Temperature: -13°F to 122°F
