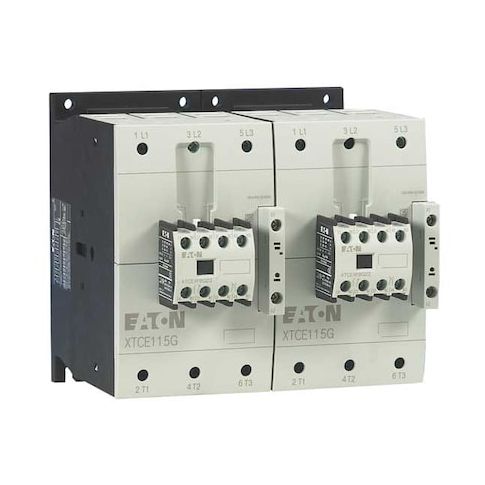

IEC Magnetic Contactor, 1NC/1NO, 480V AC, 3 P, Reversing, Screw MPN:XTCR115G11C
Free Shipping
In Stock
The Eaton IEC Magnetic Contactor is a reliable and versatile solution for three-phase applications, offering reversing action for potential changes in motor direction. Its 480V AC coil voltage and 1NO/1NC auxiliary contact configuration make it suitable for a wide range of inductive and resistive loads. With a frame G size and mounting options for DIN rails or panels, this contactor is ideal for use in industrial settings, including manufacturing, HVAC, and material handling. Its compliance with CE, CSA, and UL standards ensures performance reliability, making it a trusted choice for applications where motor control is critical.
Top product features:
- Reversing action: Designed for potential change in direction of motor rotation.
- Auxiliary Contact Form: Comes with one normally open (NO) and one normally closed (NC) contacts.
- Operates at a coil voltage of 480V AC.
Top product applications:
- Industrial Control Systems
- High-Current Motor Control Applications
- Three-Phase Motor Control Systems
The EATON - IEC Magnetic Contactor is a reversing contactor suitable for use in three-phase applications. It is rated to operate at a coil voltage of 480V AC and has an auxiliary contact configuration of 1NO/1NC. The device features a Frame G size, and it's designed to handle inductive loads up to 115 A and resistive loads up to 160 A. With no enclosure, the unit can be mounted on DIN rails or panels. This product is part of the XT series.
Key Features:
- - Reversing action: Designed for potential change in direction of motor rotation.
- - Auxiliary Contact Form: Comes with one normally open (NO) and one normally closed (NC) contacts.
- - Coil Voltage: Rated to operate at a voltage level of 480V AC.
- - Horsepower Ratings: Designed for compatibility with motors having different horsepower ratings, which may vary based on phase and voltage
- ranging potentially from as low as 10 hp @ single phase -120V AC to possibly as high as 100 hp @ three phase -600V AC.
- - Standards Compliance: Complies with CE, CSA, EN/IEC 60947, RoHS, UL Listed standards. Performance reliability depends on usage conditions.
- - Mounting Style: Versatile mounting options including DIN Rail or Panel mountings are available.
- - Operating Temperature Range: Rated for operation within temperatures ranging from -13 Degrees F to +122 Degrees F. Suitability varies by specific environmental conditions.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.60
- Package Width: 11.00
- Package Height: 8.00
- Package Weight: 14.97
