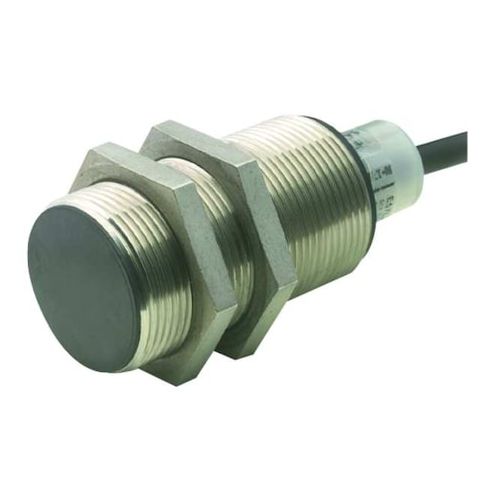

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, M12, 3 Wires, Semi-Shielded MPN:E57-30LE22-B1D
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, M12, 3 Wires, Semi-Shielded
This inductive proximity sensor is a reliable and versatile solution for detecting objects in a variety of applications. Its semi-shielded design and stainless steel construction make it suitable for use in harsh environments, such as food processing and pharmaceutical manufacturing. The sensor's 300 Hz operating frequency and 22 mm detecting distance provide accurate and consistent results. Its compact size and M12 connection make it easy to integrate into existing systems. Ideal for use in applications such as conveyor belt monitoring, level detection, and object presence sensing, this sensor offers a reliable and efficient solution for industrial automation.
Top product features:
- Cylindrical design for easy mounting and installation
- Inductive sensing technology for proximity detection
- Semi-shielded design for protection against environmental factors
Top product applications:
- Automotive manufacturing: This sensor can be used to detect the presence of metal parts in automotive manufacturing processes, such as detecting the presence of a metal pin in a gear assembly.
- Food processing: The stainless steel construction and IP67/69K rating make this sensor suitable for use in food processing environments, where it can be used to detect the presence of metal parts in a production line.
- Medical device manufacturing: This sensor can be used to detect the presence of metal parts in medical device manufacturing processes, such as detecting the presence of a metal screw in a surgical instrument.
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 6 to 48V DC, Semi-Shielded, Proximity Sensor Operating Frequency 300 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 22 mm, Proximity Sensor Electrical Connection 4 Pin Micro DC Connector, Output Mode NC, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 70 mm, Operating Temp. Range -13 Degrees to 158 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 2.20
- Package Height: 5.20
- Package Weight: 0.32
Product info last updated on January 31, 2026 2:31am UTC
Category: Industrial Electrical Controls and Automation
