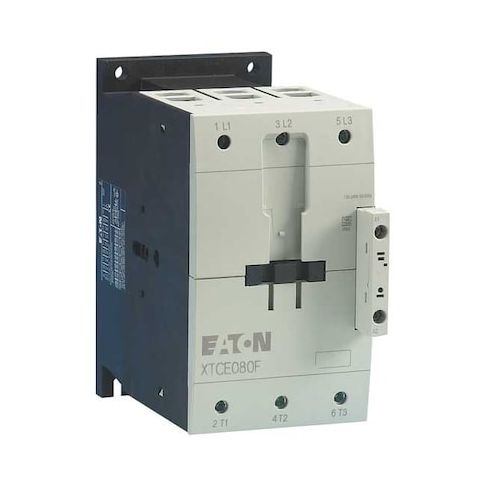

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 3 P, Non-Reversing, Screw MPN:XTCE080F00TD

• The Eaton XT IEC contactor is an IEC Magnetic Contactor rated for switching within specified electrical parameters. It is rated for non-reversing operation, a 3-pole device with a 24 V DC coil and screw terminals

• does not include auxiliary contacts. It is intended for use with compatible IEC mounting configurations
• enclosure requirements should be determined based on application needs.

  - Action: Rated for non-reversing operation

• - Amperage Rating: 80A
• - Coil Voltage: 24V DC
• - Coil Volts: 24 V DC
• - Contact Configuration: 0 NO, 0 NC
• - Aux. Contact Configuration: Does not include auxiliary contacts
• - Auxiliary Contact Form: No Auxiliary Contacts
• - Certifications: UL Listed
• CSA Certified
• - Embedded Surge Suppressor: Yes
• - Enclosure NEMA Rating: No Enclosure
• - Frame / Series / Class / Code: Frame F / XT
• - Frame Size: F
• - Frequency: 50/60 Hz
• - Full Load Amps - Inductive: 80 A
• - Full Load Amps - Resistive: 110 A
• - HP @ 1 Phase - 120V: Horsepower ratings are provided for specific voltage and phase conditions
• consult specifications for detailed information
• - HP @ 1 Phase - 230V: 15
• - HP @ 1 Phase - 240V: 15 hp
• - HP @ 3 Phase - 208V: 25 hp
• - IP Rating: IP20
• - Includes Auxiliary Contacts: No
• - Item: IEC Magnetic Contactor
• - Maximum Operating Temperature: rated for operation within specified temperature ranges
• - Maximum Voltage Rating: 690V AC
• - Mechanical Operating Durability: 10000000 cycles
• - Minimum Operating Temperature: rated to operate within the specified temperature range
• actual performance may vary based on conditions
• - Mounting Hole Diameter: 0.24 in
• - Mounting Hole Distance - Height: 6.14 in
• - Mounting Hole Distance - Width: 2.79 in
• - Mounting Style: DIN Rail, Panel
• - NEMA Enclosure Rating: No Enclosure
• - Number of Auxillary Contacts: 0
• - Number of Poles: 3
• - Overall Depth: 6.3 in
• - Overall Height: 6.69 in
• - Overall Width: 4.37 in
• - Product Height: 6.69 in
• - Product Length/Depth: 6.30 in
• - Product Name: Eaton XT IEC contactor
• - Product Width: 4.37 in
• - Response Time: Not Rated
• - Reversing: No
• - Reversing Capability: Non-Reversing
• - Series: XT
• - Standards: CSA, UL Listed
• - Terminal Connection Type: Screw
• - Type: Full voltage non-reversing contactor
• - Width: 3.54 in
