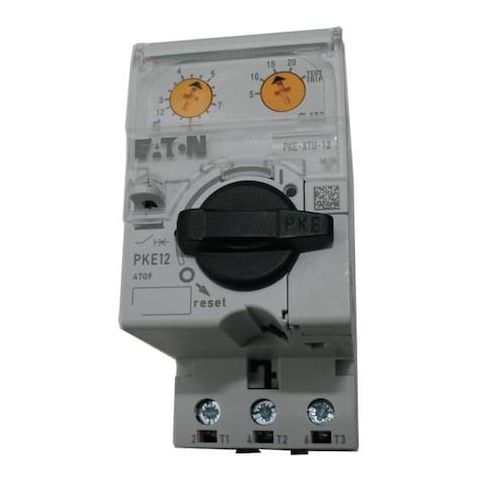

Manual Mtr Protector, 1.2A, Rotary, Frame D MPN:XTPE1P2BCS
Manual Mtr Protector, 1.2A, Rotary, Frame D
This Manual Motor Protector from Eaton is a reliable and efficient solution for motor protection in a variety of applications. Suitable for use in industrial settings, it protects motors from overheating and overloading, ensuring optimal performance and extending equipment lifespan. With a current rating of 1.2A and a maximum voltage rating of 600V AC, it can handle demanding applications. The product's compact design and DIN rail mounting style make it easy to integrate into existing systems. Ideal for use in manufacturing, oil and gas, and other industries where motor protection is critical.
Top product features:
- Manual Motor Protector provides overload protection to prevent motor damage
- Operator Selector Switch allows for easy selection of motor protection settings
- Three-phase design enables the protection of three-phase motors
Top product applications:
- Protecting sensitive equipment from power surges and overloads in industrial settings
- Monitoring and controlling motor power in manufacturing plants
- Protecting electrical motors in commercial buildings and facilities
Manual Motor Protector, NEMA Size Not Applicable, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 1.2 A, Horsepower @ Three Phase - 480V AC 1/2 hp, Series XTPE Series, Horsepower @ Three Phase - 600V AC 1/2 hp, Maximum Overload Relay Current Setting 1.2 A, Minimum Overload Relay Current Setting 0.3 A, Mounting Style DIN Rail, NEMA Enclosure Rating No Enclosure, Number of Required Thermals Not Applicable, Overload Protection Type Electronic
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 2.30
- Package Height: 6.20
- Package Weight: 1.08
Product info last updated on April 30, 2026 8:51am UTC
Category: Industrial Electrical Controls and Automation
