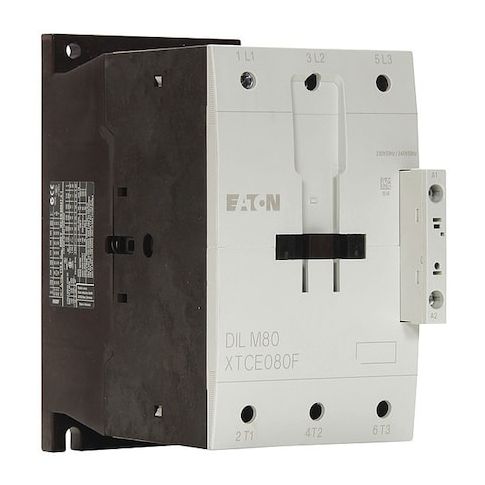

IEC Magnetic Contactor, No Auxiliary Contacts, 24V AC, 3 P, Non-Reversing, Screw MPN:XTCE080F00T
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient control solution for industrial and commercial applications. Designed for control-panel applications, it features a 3-pole, non-reversing configuration with a 24V AC coil and screw-terminal connections. With a high amperage rating of 110A resistive and 80A inductive, it can handle demanding loads. Suitable for use in a variety of applications, including HVAC, lighting, and conveyor systems, it offers a long mechanical lifespan of approximately 10 million cycles. Its compact design and IP20 rating make it an ideal choice for industrial control panels and automation systems.
Top product features:
- The Eaton XT IEC contactor is a 3-pole, non-reversing IEC magnetic contactor with a 24V AC coil and screw-terminal connections, configured without auxiliary contacts.
- It operates within the XT frame (Frame F) and is intended for control-panel applications in accordance with IEC standards.
- It has an amperage rating of 80A inductive and 110A resistive.
Top product applications:
- Industrial control panel applications
- Control of 3-phase motors in HVAC systems
- Control of 3-phase motors in industrial machinery
The Eaton XT IEC contactor is a 3-pole, non-reversing IEC magnetic contactor with a 24V AC coil and screw-terminal connections, configured without auxiliary contacts. It operates within the XT frame (Frame F). It is intended for control-panel applications in accordance with IEC standards.
Key features
- - Coil voltage: 24V AC
- - Poles: 3
- - Amperage rating (full load): 80A inductive
- 110A resistive
- - Auxiliary contacts: No auxiliary contacts
- - Contact configuration: 0 NO, 0 NC
- - Reversing: Non-Reversing
- - Contactor style/series: IEC
- XT
- - Frame/size: Frame F
- - Mounting style: DIN Rail, Panel
- - Electrical connection: Screw terminals
- - Rated for operation up to 690V AC
- - Frequency: 50/60 Hz
- - IP rating: IP20
- - Certifications: UL Listed
- CSA Certified
- - Embedded surge suppressor: Yes
- - Enclosure: No Enclosure
- - Mechanical lifespan: approximately 10 million cycles (subject to actual operating conditions)
- - Electrical endurance ratings based on specified test conditions
- actual performance may vary depending on application and usage patterns.
- - Physical dimensions: Height 6.69 in
- Width 4.37 in
- Depth 6.26 in
- - Operating temperature: -13°F to 122°F
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 11 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.90
- Package Width: 7.30
- Package Height: 3.90
- Package Weight: 5.00
