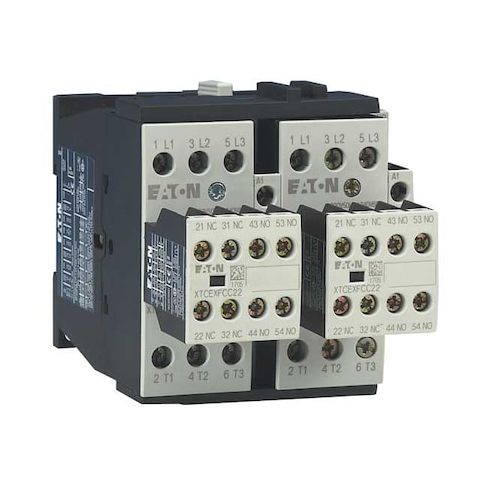

IEC Magnetic Contactor, 1NC/2NO, 480V AC, 3 P, Reversing, Screw MPN:XTCR018C21C

• The Eaton XT IEC contactor is a 3-pole reversing IEC magnetic contactor rated for switching power circuits within specified parameters. It is rated for operation with a 480 V AC coil voltage, contains an integrated surge suppression component (not necessarily functional as a protective device), and is equipped with auxiliary contacts configured as 2 normally open / 1 normally closed, totaling four auxiliary contacts. The unit mounts on DIN rail or panel and has an enclosure rating of IP20 according to IEC standards, with a frame size C in the XT series. Certifications include those recognized under applicable standards and regulations.

  - Poles: 3

• - Action: Reversing
• - Coil voltage: 480 V AC
• - Full load amps: Inductive 18 A
• Resistive 40 A
• - Auxiliary contacts: 4 total
• Configuration 2 NO/1 NC
• Form 1 NC/2 NO
• - Main contact configuration: 2 NO, 2 NO
• - Terminals: Screw
• - Embedded surge suppressor: Yes
• - Enclosure: IP20 (per IEC standards)
• - Mounting: DIN Rail, Panel
• - Frame / Series: Frame C
• XT
• - Dimensions (W × H × D): 7.5 in × 4.5 in × 4.75 in
• - Frequency: 50/60 Hz
• - Certifications / standards: Certifications include those recognized under applicable standards and regulations.
• - HP ratings (examples): 1-Phase 120V: 2 hp
• 3-Phase 480V: 10 hp
• 3-Phase 575V: 15 hp
