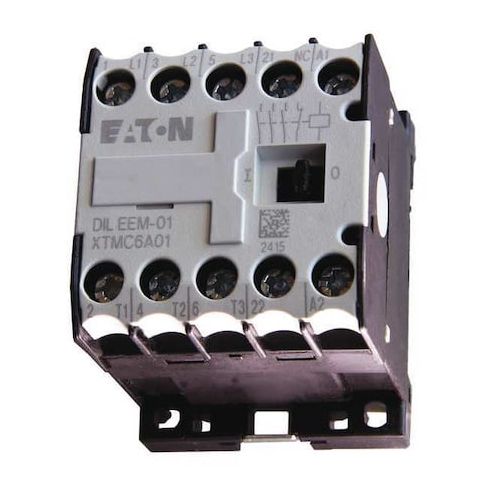

IEC Miniature Magnetic Contactor, 1NC, 120V AC, 3 P, Non-Reversing, Screw MPN:XTMC6A01A

• The Eaton XT IEC Miniature Magnetic Contactor is a 3-pole, non-reversing, IEC-style miniature contactor used to switch low-power circuits. It operates with a 120 V AC coil, uses screw terminals for wiring, and includes an embedded surge suppressor and one auxiliary contact (1NC). The device supports DIN Rail or Panel mounting

• no enclosure is included.

  Key features:

  • - Coil voltage: 120V AC
  • - Action: Non-Reversing
  • - Poles: 3
  • - Auxiliary contacts: 1NC (Auxiliary Contact Configuration: 1NC)
  • - Contains an embedded surge suppressor (functionality may vary).
  • - Electrical connection: Screw terminals
  • - Frame/Series: Frame A, XT series
  • - Mounting style/position: DIN Rail, Panel
  • Vertical
  • - Enclosure: No Enclosure
  • - Frequency: 50/60 Hz
  • - Rated for operation up to 690V AC/DC within specified conditions.
  • - Amperage ratings: 6.60A (Amperage Rating)
  • Full Load Amps Inductive: 6A
  • Resistive: 20A
  • - Certifications/Standards: UL Listed
  • CSA Certified
  • IEC 60947
  • EN 60947
  • CE Marked
  • RoHS
