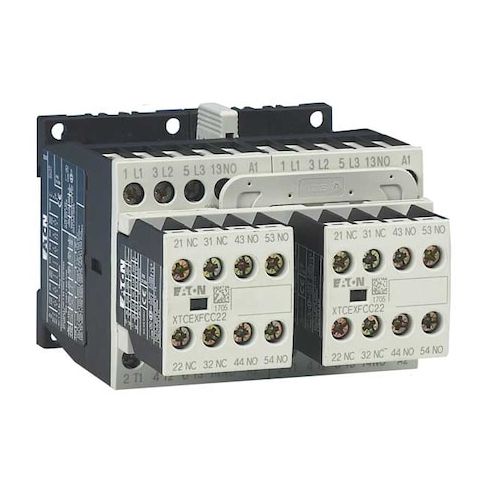

IEC Magnetic Contactor, 1NC/2NO, 120V AC, 3 P, Reversing, Screw MPN:XTCR012B21A

• The EATON - IEC Magnetic Contactor is a reversing type, full voltage contactor intended for use in industrial and commercial settings. It has a coil voltage specification of 120V AC and an amperage rating of 12A. The contactor features screw terminals intended for electrical connection and is compatible with both DIN Rail or Panel mounting options. With its frame size B, it comes without an enclosure but carries certifications including UL Listed, CSA Certified, IEC 60947, EN 60947 and complies with CE marking.

  Key Features:

• - Reversing action: This feature allows the direction of motor rotation to be changed.
• - Auxiliary Contact Configuration: Comes with a configuration of 2NO/1NC which provides flexibility in control circuit design.
• - Coil Voltage: Has a coil voltage specification of 120V AC suitable for many industrial applications.
• - Electrical Connection: Uses screw terminals intended for electrical connection.
• - Certifications & Compliances: Complies with UL Listed
• CSA Certified
• IEC 60947
• EN 60947 standards.
• - Mounting Style: Compatible with both DIN Rail or Panel mounting options.
• - Horsepower Ratings: Compatible with various horsepower ranges from single phase to three phase operations, depending on specific power requirements.
