IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw MPN:XTCR150G11A
Free Shipping
In Stock

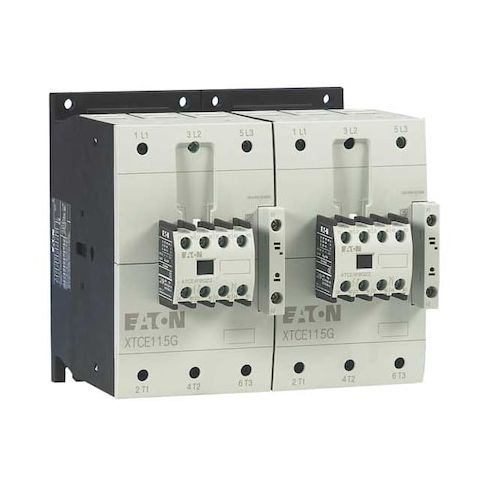

The Eaton XT IEC contactor is a reliable and efficient electrically operated switching device suitable for a wide range of applications. Its reversing capability and 3-pole design make it ideal for use in motor control circuits, allowing for smooth and safe operation. The integrated surge suppression component provides added protection against electrical surges, while the screw terminals and DIN Rail/Panel mounting options offer flexibility and convenience. With its UL Listed, CSA Certified, and IEC Rated certifications, this contactor meets the highest standards of safety and quality, making it an excellent choice for industrial and commercial applications.
Top product features:
- The Eaton XT IEC contactor has 3 poles.
- It is a full voltage reversing contactor.
- It includes an integrated surge suppression component.
Top product applications:
- Industrial Automation
- High-Reliability Power Control Systems
- Electrical Panel Building
The Eaton XT IEC contactor is an IEC magnetic contactor (electrically operated switching device) rated for switching applications within specified parameters. This 3-pole reversing model has a 120V AC coil, 1 NO and 1 NC auxiliary contacts, and an integrated surge suppression component. It uses screw terminals for wiring and is suitable for mounting on DIN Rail or Panel as specified
- does not include an enclosure.
- Poles: 3
- Reversing: Yes
- Type: Full voltage reversing contactor
- Reversing capability: Reversing
- - Coil: 120 V AC
- Frequency: 50/60 Hz
- Integrated surge suppression component: Yes
- - Contacts: Contact configuration 1 NO/1 NC
- Auxiliary contacts: 2 (1NO/1NC)
- - Electrical connections: Screw terminals
- - Enclosure/IP: No Enclosure
- IP rating: IP20
- - Mounting/ frame: Series XT
- Frame: G
- Mounting style: DIN Rail, Panel
- - Certifications/Standards: UL Listed
- CSA Certified
- IEC Rated
- CE Marked
- - Full load amps: Inductive 150 A
- Resistive 190 A
- - Product identifiers: Product Name: Eaton XT IEC contactor
- Number of Aux Contacts: 2
- Number of Poles: 3
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 11.10
- Package Height: 7.90
- Package Weight: 14.95
