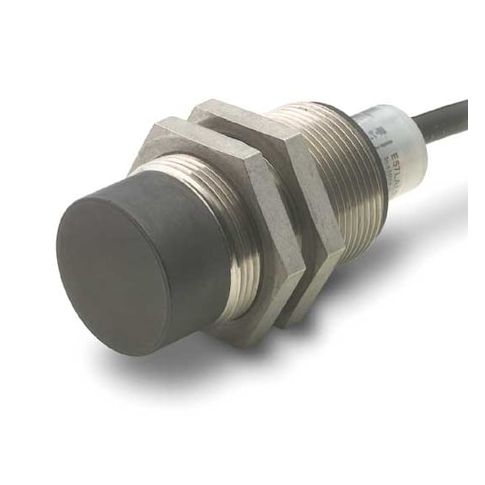

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, Micro, 2 Wires, Unshielded MPN:E57LBL30A2EA
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, Micro, 2 Wires, Unshielded
This inductive proximity sensor is a reliable and versatile solution for detecting objects in a variety of applications. Its cylindrical design and stainless steel construction make it ideal for use in harsh environments, such as food processing, pharmaceuticals, and chemical plants. The sensor's 15mm detecting distance and 20-250V AC power requirement make it suitable for a range of applications, including conveyor belt monitoring, tank level monitoring, and machine guarding. The sensor's compact size and easy-to-use 2-wire output make it a convenient choice for many industries. It's also resistant to extreme temperatures and has a long lifespan.
Top product features:
- Cylindrical design allows for easy installation in tight spaces
- Detects objects within a 15 mm distance
- Operates in a wide temperature range of -13 to 158 degrees Fahrenheit
Top product applications:
- Industrial Automation
- Automotive Manufacturing
- Material Handling Equipment
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 20 to 250V AC, Unshielded, Proximity Sensor Operating Frequency 20 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 3 Pin Micro AC Connector, Output Mode NC, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, Case Material 303 Stainless Steel, Length 73 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 250mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 2.10
- Package Height: 2.10
- Package Weight: 0.30
Product info last updated on January 15, 2026 4:30am UTC
Category: Industrial Electrical Controls and Automation
