IEC Miniature Circuit Breaker, FAZ-NA Series, 20A, 1 Pole, Not Rated, 10kA at 277/480V AC, C Curve MPN:FAZ-C20/1-NA-DC-SP
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G111420220

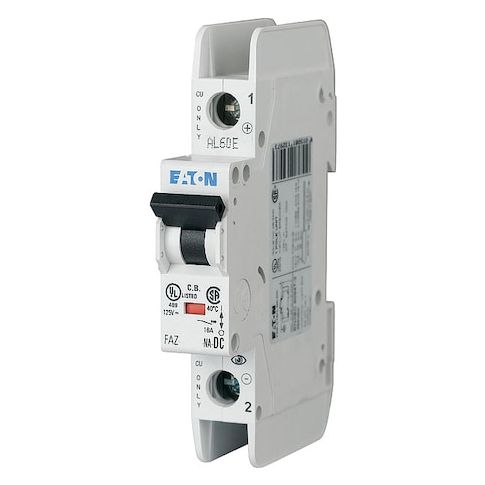

IEC Miniature Circuit Breaker, FAZ-NA Series, 20A, 1 Pole, Not Rated, 10kA at 277/480V AC, C Curve
Protect your industrial systems with the IEC Miniature Circuit Breaker, FAZ-NA Series, 20A, 1 Pole. This reliable device is designed for high-performance applications, featuring a 10kA maximum air rating at 277/480V AC and a C Curve trip type for instantaneous protection. With a DIN rail mounting style and screw terminal connection, it's easy to integrate into your existing infrastructure. Suitable for industrial use, this circuit breaker meets UL Type UL 489 standards and is compliant with CSA Std. C22.2 No. 235. Its compact size and robust design make it an ideal solution for a wide range of applications, from machinery to power distribution systems.
Top product features:
- Trip Type is Fixed Instantaneous
- Max. AIR Rating is 10 kA at 277/480V AC
- Terminal Connection is Screw
Top product applications:
- Industrial
- DIN Rail
- Fixed Instantaneous
IEC Miniature Circuit Breaker, Amps 20 A, Number of Poles 1, Curve Type C, AC Voltage Rating Not Applicable, DC Voltage Rating 125V DC, Max. AIR Rating 10 kA at 277/480V AC, Meets UL Type UL 489, Terminal Connection Screw, Trip Type Fixed Instantaneous, Circuit Breaker Mounting Style DIN Rail, Application Industrial, Length 4.13 in, Width 2.97 in, Depth 0.7 in, Circuit Breaker Actuator Toggle, Standards CSA Std. C22.2 No. 235, UL 489
Additional Information
- Country of Origin: ES
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 31 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.70
- Package Width: 2.97
- Package Height: 4.13
- Package Weight: 0.80
Product info last updated on January 15, 2026 4:28am UTC
Category: Circuit Protection
