Overload Relay, 2NC/2NO, 9 A Min current, 45 A Max current, 690V AC MPN:C440A1A045SAX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G110042300
Overload Relay, 2NC/2NO, 9 A Min current, 45 A Max current, 690V AC

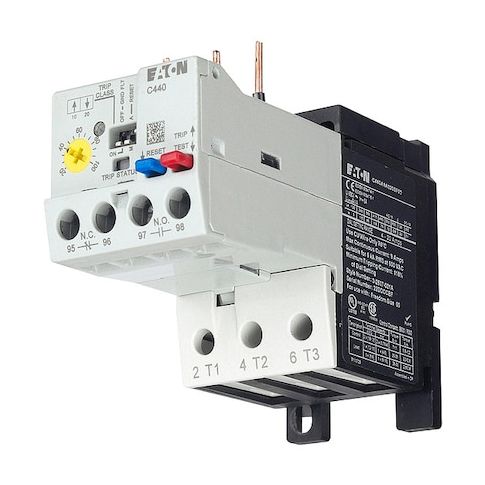

The Eaton Overload Relay is a reliable and versatile solution for monitoring and protecting electrical systems. With a maximum current rating of 45A and a minimum current rating of 9A, it provides precise control over system loads. Suitable for use in a variety of applications, including industrial and commercial settings, it features a 2NC/2NO auxiliary contact form and a trip class of 10/20/30. The relay's auto and manual reset capabilities ensure seamless operation, while its separately mounted design and screw clamp terminals facilitate easy installation and maintenance. Ideal for use in series C25 definite purpose applications.
Top product features:
- 2NC/2NO auxiliary contact form allows for both normally closed and normally open contact configurations
- Trip Class 10/20/30 provides a range of overcurrent protection settings for customizable sensitivity
- Screw clamp terminals enable easy and secure connection of wires
Top product applications:
- Motor Protection
- Industrial Control Panels
- High-Inrush Load Applications
Overload Relay, Auxiliary Contact Form 2NO/2NC, Maximum Overload Relay Current Setting 45 A, Minimum Overload Relay Current Setting 9 A, Trip Class 10/20/30, Maximum Voltage Rating 690V AC, NEMA Size 0, 00, 1, 1-3/4, 2, Number of Poles 3, Number of Required Thermals Not Applicable, Reset Type Auto, Manual, Includes Thermal Units Not Applicable, Mounting Style Separately Mounted, Terminal Connection Type Screw Clamp Terminals, Compatible with Series C25 Definite Purpose, Freedom
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 3.00
- Package Height: 6.50
- Package Weight: 1.00
Product info last updated on March 14, 2026 6:20pm UTC
Category: Industrial Electrical Controls and Automation
