IEC Magnetic Contactor, 1NC/2NO, 240V AC, 3 P, Reversing, Screw MPN:XTCR007B21B
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for controlling 3-phase AC circuits. Suitable for use in a wide range of applications, including industrial automation, HVAC, and lighting systems, this contactor features a reversing action and is rated for 7A full-load current. Its embedded surge suppressor provides added protection against electrical spikes, while its compact design makes it easy to install on DIN Rail or Panel. CE Marked and UL Listed, this contactor meets international safety standards, making it a trusted choice for professionals and industries worldwide.
Top product features:
- Reversing operation is supported for rated use within specified frequency ranges.
- The unit features an embedded surge suppressor.
- The device has screw terminals for electrical connection.
Top product applications:
- Motor Control Circuits
- Industrial Automation Systems
- Power Distribution Panels

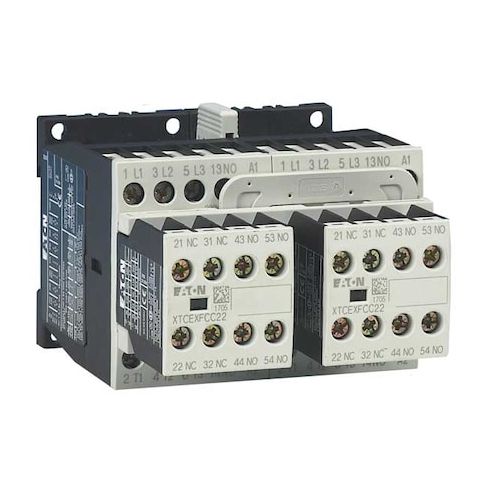

The Eaton XT IEC contactor is an IEC magnetic contactor with reversing action. It is a 3-pole device using a 240 V AC coil and rated for operation at up to 7 A full-load current (inductive). The unit features screw terminals, an embedded surge suppressor, and no enclosure. It belongs to the XT series, frame size B, with mounting options on DIN Rail or Panel. Auxiliary contacts total four, configured as 2NO/1NC and 1NC/2NO. Dimensions are approximately 5.5 inches wide, 5.25 inches high, and 4.92 inches deep. Reversing operation is supported
- rated for use within specified frequency ranges.
- Reversing: Yes
- - Poles: 3
- - Coil voltage: 240 V AC
- - Amperage rating: 7 A (full-load inductive)
- 22 A (full-load resistive)
- - Auxiliary contacts: 4 (2 NO/1 NC
- 1 NC/2 NO)
- - Embedded surge suppressor: Yes
- - Enclosure: Not included or not provided
- - Mounting style: DIN Rail, Panel
- - Electrical connection: Screw
- - Frame/Series: Frame B
- XT
- - Frequency: 50/60 Hz
- - IP rating: IP20
- - Certifications/Standards: CE Marked
- EN 60947
- IEC 60947
- CSA Certified
- UL Listed
- - Product name: Eaton XT IEC contactor
- - Dimensions: approximately 5.5 inches wide
- 5.25 inches high
- 4.92 inches deep
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 5.40
- Package Height: 5.10
- Package Weight: 1.50
