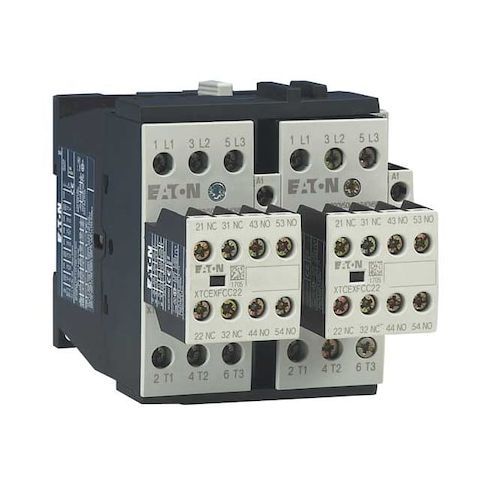

IEC Magnetic Contactor, 1NC/2NO, 24V DC, 3 P, Reversing, Screw MPN:XTCR032C21TD
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient 3-pole, reversing magnetic switch designed for a wide range of applications. Suitable for mounting on DIN rails or panels, this unit features screw terminals, embedded surge suppression, and a frame size C in the XT series. With a rating of IP20 and a maximum operating temperature of 122°F, it can withstand harsh environments. Ideal for use in control panels, the Eaton XT IEC Magnetic Contactor is certified to CSA, UL, and IEC standards, making it a great choice for industrial, commercial, and residential applications that require a high level of reliability and performance.
Top product features:
- Reversing action
- 3-pole magnetic switch
- Embedded surge suppression
Top product applications:
- Industrial Automation
- Power Distribution Systems
- Control Panels
The Eaton XT IEC contactor is a 3-pole, reversing magnetic switch rated for operation within specified voltage ranges. It features screw terminals, embedded surge suppression, and a frame size C in the XT series, suitable for mounting on DIN rails or panels. The unit has an IP20 protection rating and ships without an enclosure.
Key features
- - Action: Reversing
- - Poles: 3
- - Coil Voltage: 24 V DC
- - Full Load Amps: Inductive 32 A
- Resistive 45 A
- - Auxiliary Contacts: 4 total
- - Auxiliary Contacts configuration: 2 NO/1 NC
- - Auxiliary Contact Form: 1 NC/2 NO
- - Contact Configuration: 2 NO, 2 NO
- - Electrical Connection: Screw terminals
- - Embedded Surge Suppressor: Yes
- - Mounting Style: DIN Rail, Panel
- - Frame / Series: Frame C
- XT
- - Standards/Certifications: CSA Certified
- EN 60947
- UL Listed
- IEC 60947
- - CE Marked
- - Enclosure: No Enclosure
- IP Rating: IP20
- - Maximum Operating Temperature: 122 Degrees F
- - Minimum Operating Temperature: -13 Degrees F
- - Dimensions: Width 7.5 in
- Depth 4.75 in
- Height 4.5 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.90
- Package Width: 5.20
- Package Height: 7.20
- Package Weight: 3.05
