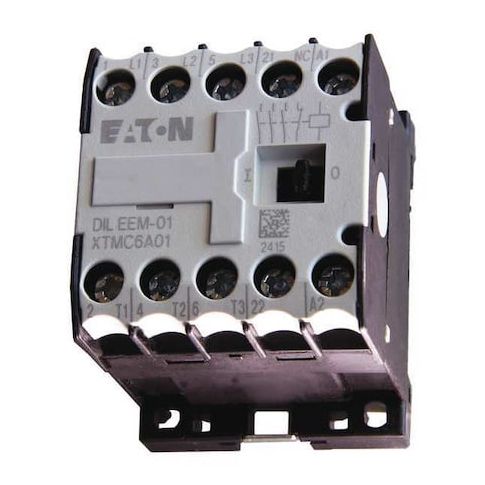

IEC Miniature Magnetic Contactor, 1NC, 240V AC, 3 P, Non-Reversing, Screw MPN:XTMC6A01B
Free Shipping
In Stock
The Eaton IEC Miniature Magnetic Contactor is a versatile and reliable switch ideal for controlling lower-power circuits in various industrial applications. Suitable for use in protected environments, it features a compact design, making it perfect for space-constrained installations. With its non-reversing action and embedded surge suppressor, this contactor provides enhanced safety and reliability. It's suitable for applications such as lighting, HVAC, and conveyor systems, and can be mounted on DIN rail or panel. Its robust design and long lifespan make it an excellent choice for industries requiring efficient and reliable control solutions.
Top product features:
- Embedded Surge Suppressor: The product features an embedded surge suppressor to protect against electrical surges and spikes.
- Screw Terminals: The product has screw terminals for easy and secure connections to other devices.
- Non-Reversing Operation: The product is designed for non-reversing operation, allowing it to control circuits in a one-way direction.
Top product applications:
- Industrial control systems
- Motor control applications
- Low-power circuit control
IEC Miniature Magnetic Contactor is a 3-pole, IEC-style switch used to control lower-power circuits. It operates with a 240 V AC coil and is non-reversing. The unit features frame size A and includes one auxiliary contact (1NC). It has an embedded surge suppressor, screw terminals, and mounting options for DIN rail or panel installations. Rated for operation within the specified voltage ranges of up to 690 V AC/DC, designed for use within the specified frequency range of 50/60 Hz, enclosure rating: IP20, suitable for indoor use in protected environments, and vertical mounting. Its overall dimensions are 1.77 in wide, 2.28 in high, and 3.27 in deep, with an operating temperature range from -13 to 122 F and has a mechanical lifespan rated at approximately 10 million cycles under normal conditions. Series XT, and the product complies with applicable standards including CCC, CSA, EN/IEC 60947, UL listing requirements, and VDE regulations.
Specifications:
- - Action: Non-Reversing
- - Poles: 3
- - Frame Size: A (Frame A)
- - Series: XT
- - Coil Voltage: 240 V AC
- - Auxiliary Contacts: 1 (1NC)
- - Includes Auxiliary Contacts: Yes
- - Auxiliary Contact Configuration/Form: 1NC
- - Embedded Surge Suppressor: Yes
- - Terminal Connection Type: Screw
- - Mounting Style: DIN Rail, Panel
- - Enclosure: IP20, indoor use in protected environments
- - Maximum Voltage Rating: Up to 690 V AC/DC
- - Frequency / Phase: 50/60 Hz, Three
- - Overall Dimensions (W x H x D): 1.77 in x 2.28 in x 3.27 in
- - Operating Temperature: -13 to 122 F
- - Mechanical Durability: Approximately 10,000,000 cycles
- - Reversing: No
- - Standards: CCC, CSA, EN/IEC 60947, UL listing requirements, VDE regulations
- - Full Load Amps: Inductive 6 A
- Resistive 20 A
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 1.90
- Package Height: 2.10
- Package Weight: 0.40
