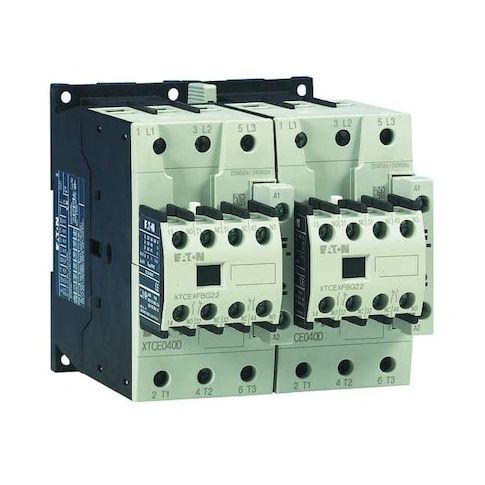

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Reversing, Screw MPN:XTCR040D11TD
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for controlling and protecting electrical circuits in a variety of applications. This 3-pole, reversing contactor features a 24V DC coil and 1NO/1NC auxiliary contacts, making it ideal for use in industrial control systems, motor control circuits, and power distribution systems. With a high amperage rating and embedded surge suppressor, this contactor provides reliable operation and protection against electrical surges. Its compact design and DIN rail mounting make it easy to integrate into existing systems, making it a great choice for applications in manufacturing, automation, and renewable energy.
Top product features:
- IEC Magnetic Contactor has a 24 V DC coil for operation within specified electrical parameters.
- IEC Magnetic Contactor is a 3-pole, reversing device that includes 1 normally open and 1 normally closed auxiliary contact (1NO/1NC).
- IEC Magnetic Contactor has an embedded surge suppressor for added protection.
Top product applications:
- Industrial control systems
- Power distribution panels
- Machine automation applications
The Eaton XT IEC contactor is an IEC magnetic contactor with a 24 V DC coil, rated for operation within specified electrical parameters. It is a 3-pole, reversing device that includes 1 normally open and 1 normally closed auxiliary contact (1NO/1NC) and uses screw terminals. The unit is compatible with DIN rail mounting or panel installation
- does not include an enclosure.
- Action: (removed)
- - Poles: 3
- - Coil voltage: 24 V DC
- - Amperage rating: 40A
- - Full Load Amps – Inductive: 40 A
- - Full Load Amps – Resistive: 60 A
- - Auxiliary contacts: 1NO/1NC
- - Embedded surge suppressor: Yes
- - Termination: Screw
- - Mounting style: DIN Rail, Panel
- - Enclosure: No Enclosure
- - Frame size: D
- - Series: XT
- - Certifications: IEC 60947
- EN 60947
- UL Listed
- CSA Certified
- CE Marked
- RoHS
- - IP rating: IP20
- - Width: 9.5 in
- - Depth: 6.5 in
- - Height: 6 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 22 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.30
- Package Width: 6.40
- Package Height: 5.80
- Package Weight: 5.42
