IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw MPN:XTCR095F11A
Free Shipping
In Stock

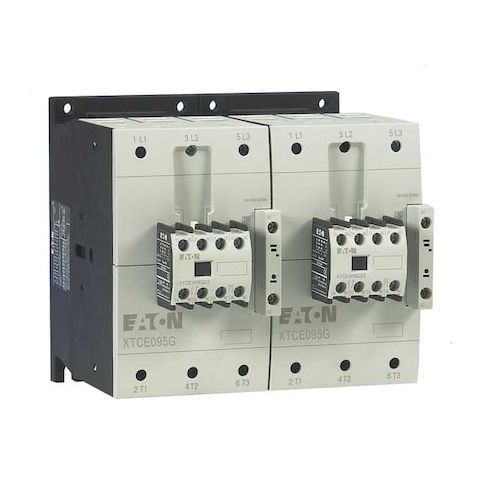

The Eaton XT IEC Magnetic Contactor is a reliable and efficient switching device designed for use in a variety of industrial applications. With its reversing action and 120V AC coil, it provides two auxiliary contacts for added functionality. Suitable for mounting on DIN rail or panel, this contactor is ideal for use in control circuits, motor control, and other applications where a high level of reliability and performance are required. Its compact design and IP20-rated enclosure make it a great choice for a range of industries, including manufacturing, oil and gas, and food processing.
Top product features:
- Reversing action
- Two auxiliary contacts (1 normally open and 1 normally closed)
- Screw terminals for wiring
Top product applications:
- Industrial Automation
- Use the Eaton XT IEC Magnetic Contactor in industrial automation systems for controlling and regulating electrical circuits.
- Commercial Lighting Control
The Eaton XT IEC Magnetic Contactor is a 3-pole IEC magnetic switching device with reversing action and a 120 V AC coil. It provides two auxiliary contacts (1 normally open and 1 normally closed) and uses screw terminals for wiring. It is rated for mounting on DIN rail or panel and has an IP20-rated enclosure. It is part of the XT series with Frame F designation.
- Action: Reversing
- - Poles: 3
- - Coil Voltage: 120 V AC
- - Amperage Rating (Full Load): Inductive 95 A
- Resistive 130 A
- - Auxiliary Contacts: 2 total (1 NO / 1 NC)
- - Termination: Screw terminals
- - Mounting Style: DIN Rail, Panel
- - Enclosure: IP20-rated enclosure
- - IP Rating: IP20
- - Series/Frame: XT, Frame F
- - Embedded Surge Suppressor: Yes
- - Frequency: 50/60 Hz
- - Certifications: UL Listed
- CSA Certified
- Conforms to IEC standards for electrical safety and performance
- - Compliances: CE Marked
- - Dimensions: 6.5 in W x 6 in H x 9.5 in D
- - Operating Temperature: -13 Degrees F to 122 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.80
- Package Width: 11.10
- Package Height: 7.90
- Package Weight: 14.60
