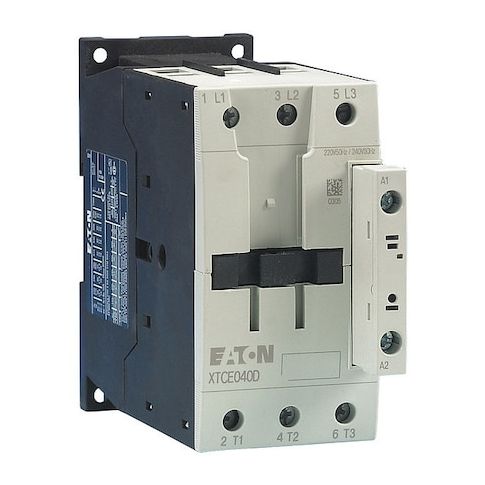

IEC Magnetic Contactor, No Auxiliary Contacts, 208V AC, 3 P, Non-Reversing, Screw MPN:XTCE040D00E
Free Shipping
In Stock
The Eaton XT IEC magnetic contactor is a reliable and efficient solution for controlling power circuits in various applications. Ideal for use in industrial settings, it features a 3-pole, full-voltage non-reversing design with a 208 V AC coil, capable of handling up to 40 A inductive and 60 A resistive loads. The contactor's compact size and screw terminal connections make it easy to integrate into existing systems, while its IP20 protection and DIN Rail or panel mounting options provide flexibility and convenience. Suitable for use in a range of industries, including manufacturing and automation.
Top product features:
- The Eaton XT IEC contactor is a full-voltage non-reversing IEC magnetic switch designed to control power circuits.
- It supports DIN Rail or panel mounting for flexible installation options.
- The unit has an embedded surge suppressor to protect against electrical surges.
Top product applications:
- Motor Control
- Industrial Automation
- Power Distribution
The Eaton XT IEC contactor is a 3-pole, full-voltage non-reversing IEC magnetic switch designed to control power circuits. It uses a 208 V AC coil and is rated for a maximum of 40 A inductive load and 60 A resistive load within specified conditions. The unit has no auxiliary contacts, uses screw terminals, and is part of the XT series (Frame D). It supports DIN Rail or panel mounting and ships without an enclosure, with IP20 protection. Certifications include CE, CSA, EN 60947, IEC 60947, RoHS, and UL Listed. Certified to standards including CE, CSA, EN 60947, IEC 60947, RoHS
- listed by UL (see certification details).
- Type: Full voltage non-reversing contactor
- - Action / Reversing: Non-Reversing
- Reversing: No
- - Poles: 3
- - Coil Voltage: 208 V AC
- - Electrical connection: Screw terminals
- - Auxiliary contacts: No
- - Contact configuration: 0 NO, 0 NC
- - Frame Size / Series: Frame D / XT
- - Mounting Style: DIN Rail, Panel
- - Enclosure: No Enclosure
- - IP Rating: IP20
- - Maximum voltage rating: rated for operation at voltages up to 690 V AC within specified parameters
- - Frequency: 60 Hz
- - Certifications: Certified to standards including CE, CSA, EN 60947, IEC 60947, RoHS
- listed by UL (see certification details)
- - Mechanical operating durability: has an expected mechanical lifespan based on standard testing procedures
- - Electrical operating durability: designed to operate over the specified number of cycles under test conditions
- - Embedded surge suppressor: Yes
- - Operating temperature range: -13°F to 122°F
- - Load ratings: rated for a maximum of 40 A inductive load and 60 A resistive load within specified conditions
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 2.30
- Package Height: 5.60
- Package Weight: 2.05
