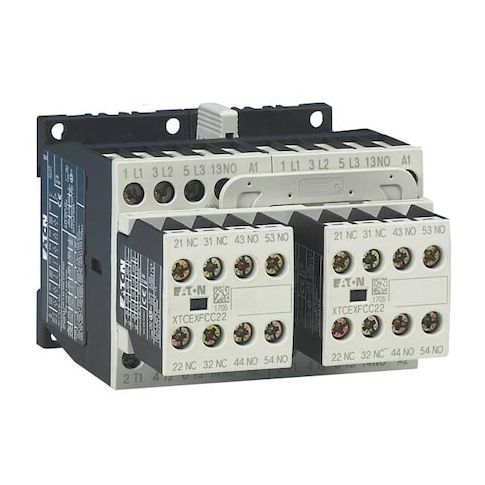

IEC Magnetic Contactor, 1NC/2NO, 208V AC, 3 P, Reversing, Screw MPN:XTCR007B21E
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient switching device designed for use in a variety of applications. Rated for 208V AC and 7A, it's suitable for use in control circuits and motor control applications. Its reversing action and 3-pole design make it ideal for use in industrial settings where flexibility and reliability are crucial. The contactor also features a built-in surge suppressor and meets international safety standards, ensuring a safe and secure installation. Suitable for use in environments with IP20 ratings, this contactor is a great choice for manufacturers, OEMs, and industrial facilities.
Top product features:
- IEC magnetic contactors are electrically operated switching devices
- The Eaton XT IEC Magnetic Contactor has a reversing action
- The product contains auxiliary contacts with a configuration of 2 normally open and 1 normally closed
Top product applications:
- Industrial control systems for manufacturing facilities
- Motor control circuits in commercial and industrial settings
- Power distribution systems for commercial and industrial buildings
The Eaton XT IEC Magnetic Contactor is an IEC magnetic contactor (electrically operated switching device) rated for operation within the specified parameters. It is rated for use with coil voltages of approximately 208 V AC and current ratings up to 7 A within specified conditions.
- Number of Poles: 3
- - Action: Reversing
- - Coil Voltage: 208 V AC
- - Amperage Rating: 7 A
- - Contains auxiliary contacts with the following configuration: 2 normally open / 1 normally closed
- - Contains auxiliary contacts with the following configuration: 1 normally closed / 2 normally open
- - Includes Auxiliary Contacts: Yes
- - Contact Configuration: 2 NO, 2 NO
- - Mounting Style: DIN Rail, Panel
- - Electrical Connection: Screw Terminals
- - Embedded Surge Suppressor: Yes
- - Enclosure NEMA Rating: Does not include an enclosure
- suitable for installation in environments compatible with IP20 ratings
- - Frame: Frame B
- - Series: XT
- - Standards: CE Marked
- CSA Certified
- EN 60947
- IEC 60947
- RoHS
- UL Listed
- - IP Rating: IP20
- - Frequency: 60 Hz
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 5.40
- Package Height: 5.20
- Package Weight: 1.52
