IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Reversing, Screw MPN:XTCR065D11T
Free Shipping
In Stock

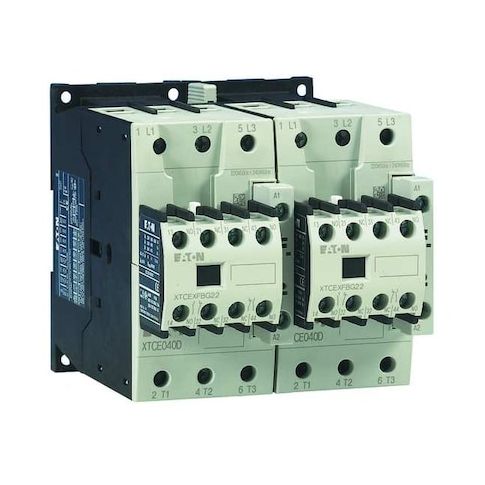

The Eaton IEC Magnetic Contactor is a versatile and reliable device designed for various industrial applications, including motor control and power distribution. Its reversing action feature allows for easy direction of motor rotation, making it ideal for use in conveyor systems, pumps, and fans. The 1NO/1NC auxiliary contact configuration enables control over multiple circuits with different power sources, increasing flexibility and efficiency. With a 24V AC coil voltage and a wide frequency range, this contactor is suitable for use in a variety of settings, including manufacturing, HVAC, and material handling. Its certifications ensure compliance with international safety standards.
Top product features:
- Reversing action: This feature allows the direction of motor rotation to be changed.
- Auxiliary Contact Configuration: With its configuration being set as 1NO/1NC, this device can control multiple circuits with different power sources.
- Coil Voltage: The product is rated for operation at a coil voltage of 24V AC.
Top product applications:
- Industrial Automation
- Motor Control
- Power Distribution
The EATON - IEC Magnetic Contactor is a reversing contactor with an amperage rating of 65A. It features a coil voltage of 24V AC and has both resistive and inductive full load currents, rated at 98 A and 65 A respectively. The contactor is designed to operate within a frequency range of 50-60 Hz. Its auxiliary contact configuration is classified as 1NO/1NC, which means it includes one normally open (NO) and one normally closed (NC) auxiliary contacts. This product complies with several certifications including EN 60947, UL Listed, CSA Certified, IEC 60947, and CE Marked.
Key Features:
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.30
- Package Width: 6.40
- Package Height: 5.60
- Package Weight: 4.66
