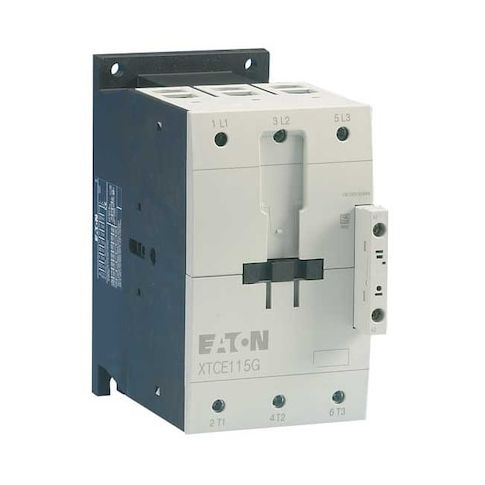

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 3 P, Non-Reversing, Screw MPN:XTCE115G00TD
Free Shipping
In Stock
The Eaton XT IEC contactor is a reliable and efficient solution for switching power circuits in a variety of applications. Its three-pole, 24V DC coil design allows for easy integration into DC power systems, making it ideal for use in industrial automation, control systems, and power distribution. With its non-reversing action and screw terminals, this contactor provides a secure and easy-to-use switching solution. Its compact size and robust construction also make it suitable for use in a range of environments, from harsh industrial settings to more controlled commercial applications.
Top product features:
- Three-pole switching capability
- Non-reversing action
- Embedded surge suppressor
Top product applications:
- Power Circuit Control
- Automotive Control Systems
- Industrial Automation
The Eaton XT IEC contactor is a three-pole, 24 V DC coil, non-reversing IEC magnetic contactor in the XT series. It uses screw terminals, has no auxiliary contacts, and is rated for switching power circuits within the specified parameters.
- Coil voltage: 24 V DC
- - Action: Non-Reversing (Reversing: No)
- - Poles: 3
- - Auxiliary contacts: No (0)
- - Electrical connection: Screw terminals
- - Embedded surge suppressor: Yes
- - Enclosure: No Enclosure
- - IP rating: rated for operation within the specified IP rating classification (IP20)
- - Frame/Series: Frame G
- Series XT
- - Maximum voltage rating: rated for operation up to 690V AC under specified conditions
- - Full load amps: rated for current loads up to 115 A (inductive) and 160 A (resistive) under specified conditions
- - Electrical durability: Tested according to applicable standards
- actual performance may vary depending on application and usage conditions
- - Mechanical durability: Endurance based on testing
- actual lifespan depends on operating conditions
- - Mounting style: DIN Rail, Panel
- - Certifications/standards: UL Listed
- CSA Certified
- EN 60947
- IEC 60947
- RoHS
- CE Marked
- - Product name: Eaton XT IEC contactor
- - Dimensions: Height 6.69 in
- Width 4.37 in
- Depth 6.30 in
- - Operating temperature: Max 122°F
- Min -13°F
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.40
- Package Width: 7.00
- Package Height: 3.90
- Package Weight: 5.20
