Molded Case Circuit Breaker, PDG Series, 20A, 3 Pole, 600V AC, 18kA at 480V AC, A Curve MPN:PDG13C0020TFFJ
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G100901945
Molded Case Circuit Breaker, PDG Series, 20A, 3 Pole, 600V AC, 18kA at 480V AC, A Curve

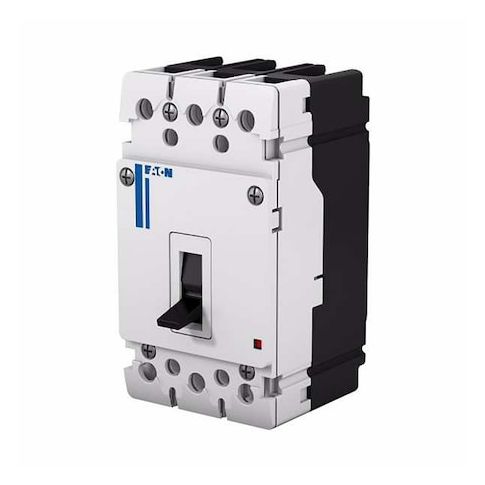

This molded case circuit breaker from Eaton is designed for reliable and efficient power distribution in various applications. With a 20A rating and 600V AC voltage, it's suitable for use in commercial and industrial settings. The 18kA interrupting capacity at 480V AC ensures safe and effective operation. The standard line and load lugs connection and thermal magnetic trip type provide added flexibility and protection. Ideal for use in data centers, hospitals, and manufacturing facilities, this circuit breaker helps prevent electrical fires and reduces downtime. Its compact design and easy installation make it a reliable choice for power distribution systems.
Top product features:
- Trip Type Thermal Magnetic
- Max. AIR Rating 18 kA at 480V AC
- Three Phase Connection
Top product applications:
- Industrial Electrical Panelboards
- Commercial Lighting Systems
- Power Distribution Systems
Circuit Breaker, 20 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 18 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Standard Line and Load Lugs, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 125A/Frame 1, Height 5.5 in, Width 3 in, Depth 2.99 in, Min. Wire Size 14 AWG, Max. Wire Size 3/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 7.00
- Package Weight: 3.00
Product info last updated on January 28, 2026 9:58pm UTC
Category: Circuit Protection
