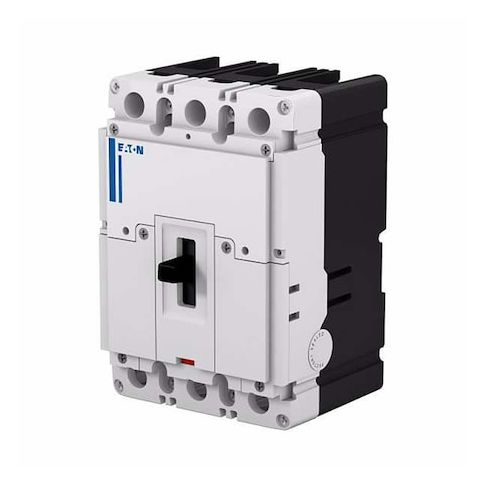

Circuit Breaker, PDG Series, 150A, 3 Pole, 600V AC, 25kA at 480V AC, A Curve MPN:PDG23F0150TFFJ
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G100901938
Circuit Breaker, PDG Series, 150A, 3 Pole, 600V AC, 25kA at 480V AC, A Curve
Eaton's PDG Series 3 Pole 150A Circuit Breaker is a reliable and efficient solution for commercial and industrial electrical systems. Rated for 600V AC and 25kA at 480V AC, this circuit breaker provides maximum protection against electrical surges and overloads. Its thermal magnetic trip type ensures fast and accurate tripping, while its instantaneous trip fixed feature prevents equipment damage. Suitable for a variety of applications, including commercial buildings, industrial facilities, and data centers, this circuit breaker is designed to meet the demands of high-power electrical systems. Its compact size and standard terminal connections make it easy to install and maintain.
Top product features:
- Three pole circuit breaker design allows for safe and efficient distribution of power in three-phase electrical systems.
- Thermal magnetic trip type provides fast and reliable overload and short-circuit protection.
- Instantaneous trip feature enables quick interruption of high-magnitude fault currents.
Top product applications:
- Industrial electrical panelboards
- Commercial building electrical distribution systems
- High-rise building electrical power distribution systems
Circuit Breaker, 150 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 25 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Standard Line and Load Lugs, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 225A/Frame 2, Height 6 in, Width 4.11 in, Depth 3.5 in, Min. Wire Size 14 AWG, Max. Wire Size 1/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 6.00
- Package Weight: 4.00
Product info last updated on March 29, 2026 4:11am UTC
Category: Circuit Protection
