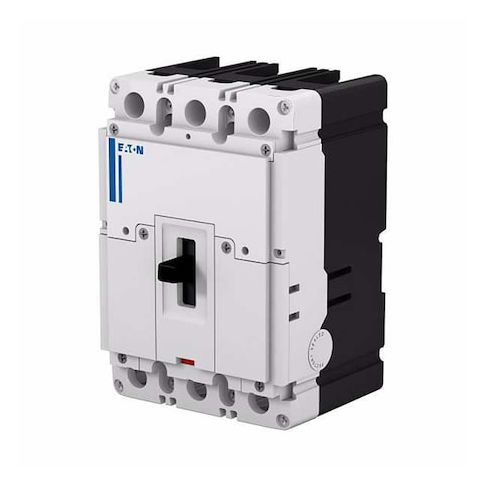

Circuit Breaker, PDG Series, 100A, 3 Pole, 600V AC, 50kA at 480V AC, A Curve MPN:PDG23M0100TFFJ
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G100901891
Circuit Breaker, PDG Series, 100A, 3 Pole, 600V AC, 50kA at 480V AC, A Curve
The Eaton PDG Series 100A 3-Pole Circuit Breaker is a reliable and efficient solution for electrical distribution systems. Designed for use in commercial and industrial settings, this circuit breaker provides 50kA of interrupting capacity at 480V AC, making it ideal for applications requiring high current handling. Its thermal-magnetic trip type ensures fast and accurate overload protection, while its compact size and standard terminal connections make installation easy. Suitable for a variety of applications, including panelboards, motor control centers, and switchboards, this circuit breaker offers a reliable and cost-effective solution for electrical system protection and control.
Top product features:
- Three pole circuit breaker for three-phase applications
- Thermal magnetic trip type for reliable overcurrent protection
- Instantaneous trip fixed for fast response to short circuits
Top product applications:
- Industrial electrical panel applications
- Commercial building electrical distribution systems
- Heavy industrial equipment control panels
Circuit Breaker, 100 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 50 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Standard Line and Load Lugs, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 225A/Frame 2, Height 6 in, Width 4.11 in, Depth 3.5 in, Min. Wire Size 14 AWG, Max. Wire Size 1/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 6.00
- Package Weight: 4.00
Product info last updated on January 31, 2026 11:07pm UTC
Category: Circuit Protection
