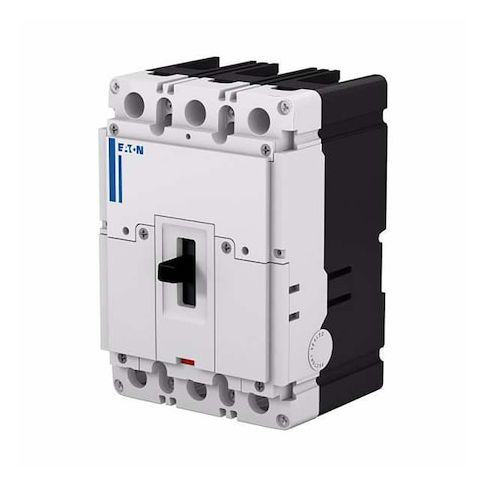

Molded Case Circuit Breaker, PDG Series, 100A, 3 Pole, 600V AC, 50kA at 480V AC, A Curve MPN:PDG23K0100TFFJ
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G100901822
Molded Case Circuit Breaker, PDG Series, 100A, 3 Pole, 600V AC, 50kA at 480V AC, A Curve
Protect your electrical systems with the reliable PDG Series Molded Case Circuit Breaker from Eaton. This 100A, 3-pole circuit breaker is designed for use in a variety of applications, including commercial and industrial settings, and is rated for 600V AC. With a maximum interrupting rating of 50kA at 480V AC, it can safely interrupt high fault currents. The thermal-magnetic trip type ensures reliable and fast tripping in the event of an overload or short circuit. Suitable for use in harsh environments, this circuit breaker operates reliably from -4°F to 158°F (-20°C to 70°C).
Top product features:
- Molded case design provides a compact and durable enclosure for the circuit breaker.
- Three-pole design allows for simultaneous control of three phases of electrical power.
- Thermal magnetic trip type provides instantaneous protection against overcurrent and short circuits.
Top product applications:
- Industrial Control Panels
- Main Distribution Panels
- Large Commercial Lighting Systems
Circuit Breaker, 100 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 50 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Standard Line and Load Lugs, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 225A/Frame 2, Min. Wire Size 14 AWG, Max. Wire Size 1/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 6.00
- Package Weight: 4.00
Product info last updated on February 1, 2026 10:13am UTC
Category: Circuit Protection
