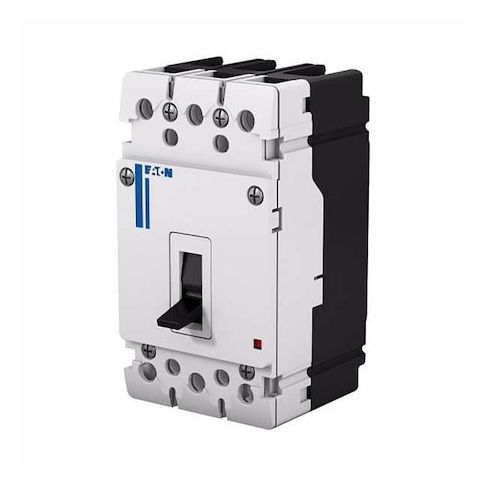

Circuit Breaker, PDG Series, 100A, 3 Pole, 600V AC, 65kA at 480V AC, A Curve MPN:PDG13M0100TFFJ
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G100901808
Circuit Breaker, PDG Series, 100A, 3 Pole, 600V AC, 65kA at 480V AC, A Curve
Protect your electrical system with the PDG Series 100A 3-Pole Circuit Breaker from Eaton. This reliable circuit breaker is designed for use in commercial and industrial applications, providing a safe and efficient way to interrupt electrical currents in the event of an overload or short circuit. With a maximum short-circuit rating of 65kA at 480V AC and a thermal magnetic trip type, this circuit breaker offers exceptional protection and reliability. Suitable for a wide range of applications, including power distribution and industrial control systems, this circuit breaker is a must-have for any electrical system.
Top product features:
- Three-pole circuit breaker design provides simultaneous protection for three phases of an electrical system.
- Thermal magnetic trip type offers protection against both thermal and magnetic overloads, providing enhanced safety and reliability.
- Instantaneous trip feature allows for immediate interruption of electrical flow in case of a short circuit, reducing the risk of damage to the system.
Top product applications:
- Industrial control panels
- Commercial electrical distribution systems
- High-voltage industrial machinery protection
Circuit Breaker, 100 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 65 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Standard Line and Load Lugs, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 125A/Frame 1, Height 4.25 in, Width 3 in, Depth 2.99 in, Min. Wire Size 14 AWG, Max. Wire Size 3/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 6.00
- Package Weight: 3.00
Product info last updated on February 16, 2026 12:39pm UTC
Category: Circuit Protection
