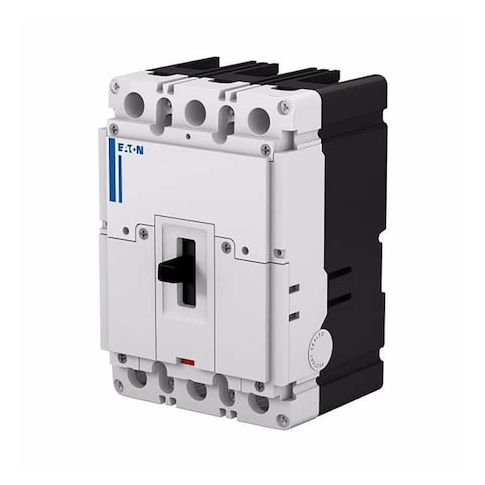

Circuit Breaker, PDG Series, 100A, 3 Pole, 600V AC, 35kA at 480V AC, A Curve MPN:PDG23G0100TFFL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G100901792
Circuit Breaker, PDG Series, 100A, 3 Pole, 600V AC, 35kA at 480V AC, A Curve
Protect your electrical system with Eaton's PDG Series 100A, 3 Pole Circuit Breaker, designed to handle 600V AC and 35kA at 480V AC. This reliable circuit breaker features a thermal magnetic trip type and instantaneous trip fixed, ensuring safe and efficient operation. Suitable for a variety of applications, including commercial and industrial settings, it provides a high level of protection against electrical overloads and short circuits. With a compact frame size and standard terminal connections, it is easy to install and integrate into your existing electrical system, providing peace of mind and reducing the risk of electrical hazards.
Top product features:
- 100A amp rating for high current handling
- Thermal magnetic trip type for reliable overload protection
- Instantaneous trip feature for rapid response to short circuits
Top product applications:
- Industrial Control Panels
- Main Electrical Distribution Boards
- High-Density Data Centers
Circuit Breaker, 100 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 35 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Standard Terminals Load Only, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 225A/Frame 2, Min. Wire Size 14 AWG, Max. Wire Size 1/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 6.00
- Package Weight: 4.00
Product info last updated on March 9, 2026 5:27pm UTC
Category: Circuit Protection
