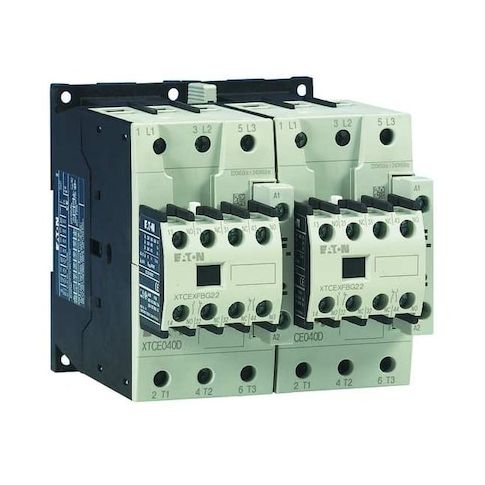

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw MPN:XTCR040D11A
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and versatile solution for reversing applications in various industries. With a 120V AC coil and 40A amperage rating, it can handle demanding electrical loads. The contactor features 1 normally open and 1 normally closed auxiliary contact pair, ensuring seamless control and monitoring. Suitable for use in environments with high temperatures and electrical noise, it provides a high level of protection and reliability. Ideal for applications such as HVAC, water treatment, and industrial automation, this contactor ensures efficient and safe operation, reducing downtime and increasing productivity.
Top product features:
- Reversing operation for changing motor direction
- 1 normally open and 1 normally closed auxiliary contact pair for controlling external circuits
- Embedded surge suppressor for protecting against electrical surges
Top product applications:
- Motor Control Centers
- Reversing conveyor systems
- 3-phase pump control
The Eaton XT IEC Magnetic Contactor is a 3-pole reversing contactor with a 120V AC coil. It incorporates 1 normally open and 1 normally closed auxiliary contact pair and is rated for operation within the specified voltage and current ranges.
- Action: intended for reversing applications when installed according to manufacturer instructions
- - Amperage Rating: 40A
- - Aux. Contact Configuration: 1NO/1NC
- - Auxiliary Contact Form: 1NC/1NO
- - Certifications: certified by relevant standards organizations, indicating compliance with applicable safety and performance standards
- - Coil Voltage: 120V AC
- - Coil Volts: 120 V AC
- - Compliances: CE Marked
- - Contact Configuration: 1 NO, 1 NC
- - Contactor Style: IEC
- - Depth: 5.79 in
- - Electrical Connection: Screw Terminals
- - Embedded Surge Suppressor: includes a surge suppression component compatible with specified electrical parameters
- - Enclosure NEMA Rating: does not include an enclosure
- suitable for installation in appropriate enclosures or environments per applicable codes
- - Frame / Series / Class / Code: Frame D
- - Frame Size: D
- - Frequency: 50/60 Hz
- - Frequency Rating: 50-60 Hz
- - Full Load Amps-Inductive: 40 A
- - Full Load Amps-Resistive: 60 A
- - HP @ 1 Phase - 120V: 3 hp
- - HP @ 1 Phase - 230V: 7-1/2 hp
- - HP @ 1 Phase - 240V: 7-1/2 hp
- - HP @ 3 Phase - 208V: 10 hp
- - HP @ 3 Phase - 240V: 15 hp
- - HP @ 3 Phase - 480V: 30 hp
- - HP @ 3 Phase - 575V: 40 hp
- - Height: 4.33 in
- - IP Rating: IP20
- - Includes Auxiliary Contacts: Yes
- - Item: IEC Magnetic Contactor
- - Maximum Operating Temperature: rated for operation within the specified temperature range under normal conditions
- - Minimum Operating Temperature: rated for operation within the specified temperature range under normal conditions
- - Mounting Hole Diameter: 0.16 in
- - Mounting Hole Distance - Height: 4.13 in
- - Mounting Hole Distance - Width: 1.77 in
- - Mounting Style: DIN Rail, Panel
- - NEMA Enclosure Rating: Not Rated
- - Number of Auxillary Contacts: 2
- - Number of Poles: 3
- - Overall Depth: 9.5 in
- - Overall Height: 6 in
- - Overall Width: 6.5 in
- - Product Height: 6 in
- - Product Length/Depth: 9.5 in
- - Product Name: Eaton XT IEC contactor
- - Product Width: 6.5 in
- - Reversing: capable of reversing operation when properly wired and configured
- - Reversing Capability: capable of reversing operation when properly wired and configured
- - Series: XT
- - Standards: CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
- - Terminal Connection Type: Screw
- - Type: Full voltage reversing contactor
- - Width: 4.33 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.50
- Package Width: 6.90
- Package Height: 6.10
- Package Weight: 4.65
