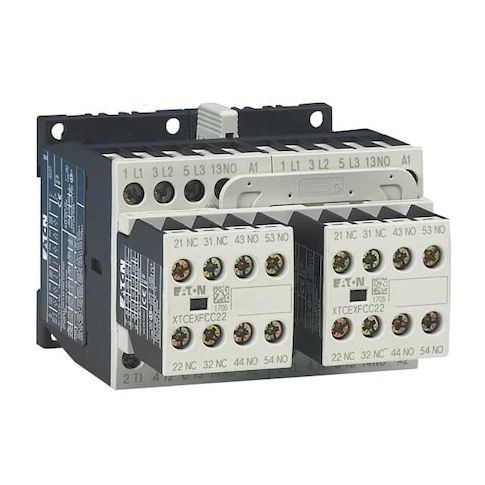

IEC Magnetic Contactor, 1NC/2NO, 208V AC, 3 P, Reversing, Screw MPN:XTCR012B21E
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for power circuit switching, ideal for use in control panels or on DIN rail. Its 3-pole, full-voltage reversing design allows for flexible control of loads, while its 208V AC coil ensures smooth operation. The contactor's embedded surge suppressor protects against transient voltage spikes, ensuring reliable performance. Suitable for standard IEC applications, this contactor is perfect for use in industrial settings, such as manufacturing, HVAC, and material handling, where high reliability and efficiency are crucial. Its compact design and screw terminal connections make it easy to install and integrate.
Top product features:
- Switches power circuits using a 208 V AC coil
- Has an integrated surge suppression component to mitigate transient voltage spikes
- Has 4 auxiliary contacts in a 2NO/1NC configuration
Top product applications:
- Control panel applications
- Industrial automation systems
- Motor control circuits
The Eaton XT IEC contactor is a 3-pole, full-voltage reversing magnetic contactor that uses a 208 V AC coil to switch power circuits. It is rated for installation in control panels or on a DIN rail, with screw terminal connections and an integrated surge suppression component. IP20-rated enclosure (if applicable) and it is part of the XT series with frame size B, suitable for standard IEC applications.
- Reversing action: N/A
- - Poles: N/A
- - Coil voltage: Rated for operation at 208 V AC within specified parameters
- - Full-load amps (inductive): 12 A
- (resistive): 22 A | Rated for use with loads up to 12 A (inductive) and 22 A (resistive) under specified conditions
- - Auxiliary contacts: 4 total
- configuration: 2NO/1NC
- form: 1NC/2NO | Equipped with auxiliary contacts conforming to the specified configurations
- - Mounting style: DIN Rail, Panel | Compatible with DIN Rail and panel mounting methods as per manufacturer specifications
- - Terminal connection: Screw | Designed for screw terminal connections within specified torque limits
- - Series/Frame: XT
- Frame B | Part of the XT series, frame size B as per product specifications
- - Certifications/standards: CE Marked
- UL Listed
- EN 60947
- IEC 60947
- RoHS
- CSA Certified | Complies with relevant standards and certifications listed above when installed and used according to instructions. Not a guarantee of safety or performance.
- - IP rating: IP20 | Conforms to IP20 ingress protection rating under standard testing conditions. Not indicative of suitability for harsh environments.
- - Embedded surge suppressor: Yes | Includes an internal surge suppression component intended to mitigate transient voltage spikes within its design parameters.
- - Operating temperature range: -13°F to 122°F | Designed to operate within this temperature range when used as intended. This does not imply guaranteed performance outside these ranges.
- - Dimensions (approx.): Width 5.5 in
- Height 4 in
- Length/Depth 3.5 in
- - Frequency: 60 Hz
- - Type: Full voltage reversing contactor
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 5.30
- Package Height: 5.20
- Package Weight: 1.51
