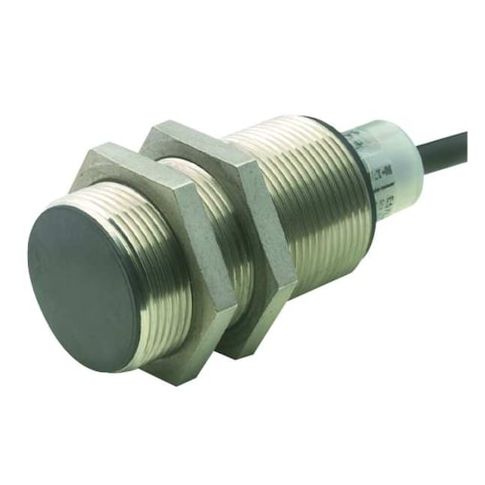

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 2 Wires, Semi-Shielded MPN:E57-30LE22-A1
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 2 Wires, Semi-Shielded
Eaton's Cylindrical Inductive Proximity Sensor is a reliable and versatile solution for detecting objects in industrial settings. With a semi-shielded design and operating frequency of 20 Hz, it can accurately detect objects up to 22 mm away. Its stainless steel construction and wide operating temperature range of -13 to 158°F make it suitable for harsh environments. The sensor's 2-wire output and 20-132V AC power requirement simplify integration into various systems. Ideal for applications such as material handling, robotics, and conveyor systems, this sensor provides a durable and efficient solution for proximity detection.
Top product features:
- Cylindrical shape allows for easy installation and reduced obstruction in tight spaces.
- Semi-shielded design minimizes electromagnetic interference and improves sensor accuracy.
- Operating temperature range of -13 to 158 degrees F enables the sensor to function reliably in a wide range of environments.
Top product applications:
- Automotive Industry
- Material Handling Equipment
- Medical Device Manufacturing
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 20 to 132V AC, Semi-Shielded, Proximity Sensor Operating Frequency 20 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 22 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 68 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 250mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 1.80
- Package Height: 6.20
- Package Weight: 0.50
Product info last updated on January 15, 2026 5:37am UTC
Category: Industrial Electrical Controls and Automation
