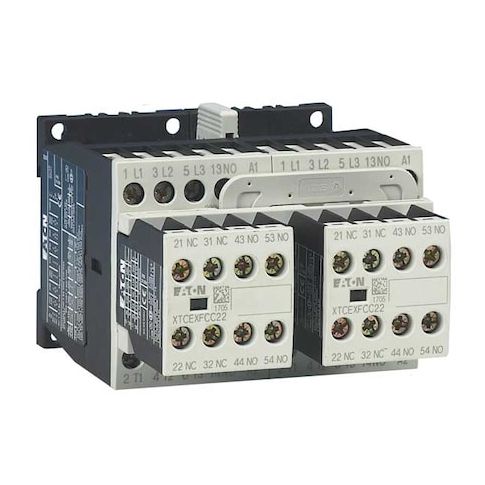

IEC Magnetic Contactor, 1NC/2NO, 480V AC, 3 P, Reversing, Screw MPN:XTCR009B21C
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for power circuit switching in various applications. Its 3-pole, full-voltage reversing design allows for easy switching of power circuits in a wide range of industries, including manufacturing, oil and gas, and renewable energy. With a 480V AC coil and ratings for up to 9 A inductive load and 22 A resistive load, this contactor is ideal for applications requiring high current handling. Its compact design and screw terminal connections make it easy to install and maintain, ensuring reliable operation and reduced downtime.
Top product features:
- The Eaton XT IEC contactor is a 3-pole, full-voltage reversing magnetic switch rated for switching power circuits within specified parameters.
- It features an embedded surge suppressor to protect the contactor and connected equipment.
- The contactor includes auxiliary contacts configured as 2NO/1NC (also available as 1NC/2NO) for controlling and monitoring the circuit.
Top product applications:
- Power Generation and Distribution Systems
- Industrial Automation and Control Systems
- High-Power Motor Control and Drives
- The Eaton XT IEC contactor is a 3-pole, full-voltage reversing IEC magnetic switch rated for switching power circuits within specified parameters.
- - Designed for operation with a 480V AC coil
- rated for up to 9 A inductive load and 22 A resistive load under specified conditions.
- - The contactor features Frame B from the XT series
- compatible with DIN Rail or panel mounting
- equipped with screw terminals
- includes an embedded surge suppressor
- auxiliary contacts configured as 2NO/1NC (also available as 1NC/2NO)
- certified according to EN 60947, UL standards, IEC standards, CSA certification
- CE marked
- IP20 enclosure rating.
- Action: Reversing
- - Reversing: Yes
- - Poles: 3
- - Coil Voltage: 480V AC
- - Frame Size / Series: Frame B
- XT
- - Type: Full voltage reversing contactor
- - Auxiliary Contacts: 4 total
- - Auxiliary Contact Configuration: 2NO/1NC (1NC/2NO available)
- - Auxiliary Contact Form: 1NC/2NO (2NO/1NC available)
- - Embedded Surge Suppressor: Yes
- - Electrical Connection: Screw terminals
- - Mounting Style: DIN Rail, Panel
- - Enclosure: No Enclosure
- - IP Rating: IP20
- - Frequency: 50/60 Hz
- - Dimensions (Overall): Width 5.5 in
- Height 4 in
- Depth 3.5 in
- - Certifications/Standards: EN 60947
- UL standards
- IEC standards
- CSA certification
- CE marked
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 5.40
- Package Height: 5.20
- Package Weight: 1.53
